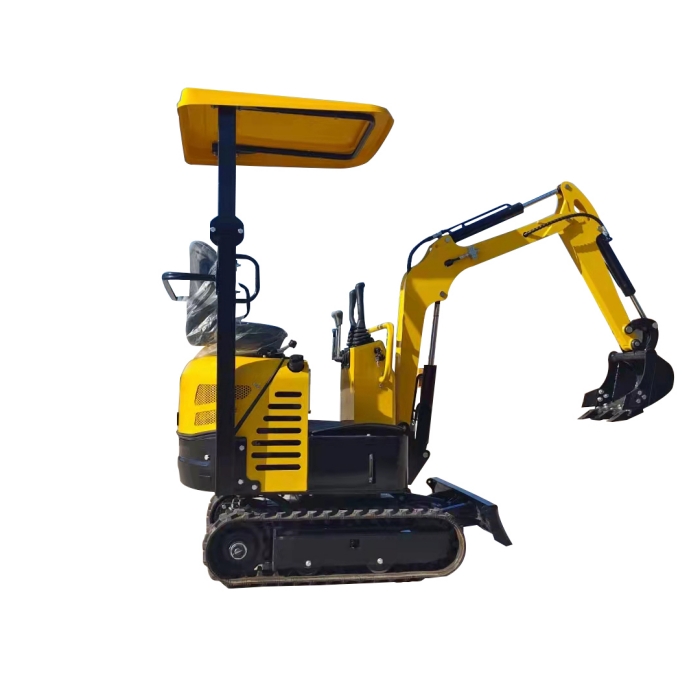

1 Ton Chinese Mini Excavator KA10 for sale, with swing arm retractable track for the customization. Product Introduction
1 ton Chinese Mini Excavator KA10 is one small-sized excavator with compact design, special for small projects / small tasks in confined places like room, garden, orchard, farmland, municipal works etc. It is also can be used in playground, public park. It's powered with small engine, easy operation, smooth to maintain.


KA10 mini excavator Features:

1. Thick counterweight, more stable
2. The heat dissipation system is added, and the heat dissipation is started with one button
3. The original 5-liter fuel tank was removed and replaced with an 11-liter fuel tank, which doubled the continuous working time
4. Use hydraulic tension device instead of screw tension.
5. The hood is covered with high temperature heat insulation and sound insulation cotton, effectively reducing noise and shell heat
6. Concealed oil pipes, both internal and external oil pipes are wrapped with sheath, more effectively protecting the oil pipe from damage


Technical Parameters

900Kg                           8.2Kw                     1960mm                        1630mm                             0.25m³


MODEL

KA10

WEIGHT

Total weight

900kg

SIZE

Total length

2200mm

Total width

930mm

Total height

2250mm

Max digging radius

2900mm

Maxdigging depth

1630mm

Max digging height

2750mm

Maxdumping height

1960mm

Min ground clearance

385mm

Engine brand

koop/B&S/Kubota

Engine mode

192F/XR2100/D722

Output power

8,2kw/9.8kw/11.8kw

WALKING CHARACTERISTICS

Walking speed

0~1.8km/h

Gradeability

30%

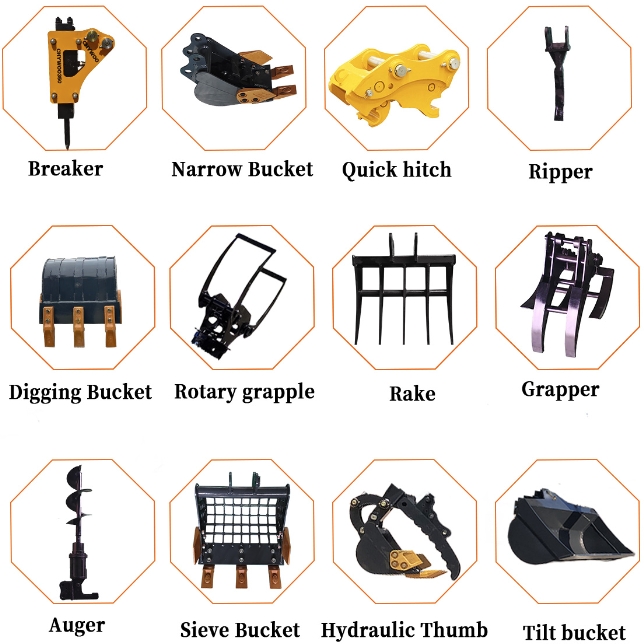

Attachments for the option
