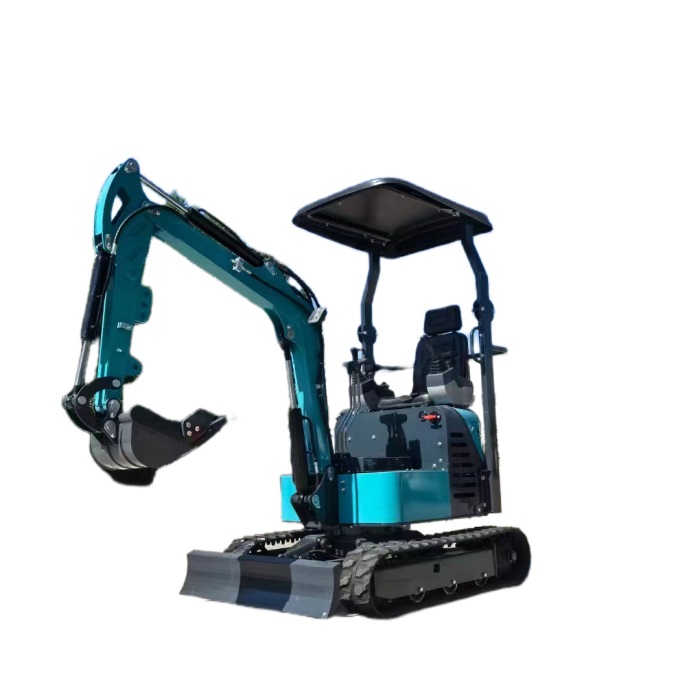

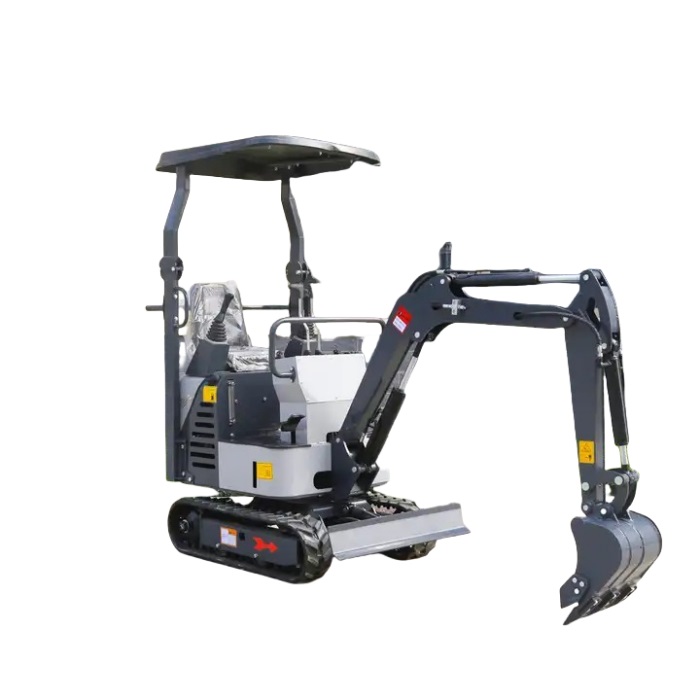

KA12 Mini Digger is compact and flexible, powerful in power, low fuel consumption, low in price. And there is a rear-lift engine hood, which is convenient for overhauling the internal parts of the engine compartment. There are three engines are available for customers' option. The Basic KA12 is powered with Chinese Brand Youpu Dual-cylinder water-cooled diesel engine, which is cheaper and more affordable, suitable for small jobs in the courtyard and farmland. And Two Japan Brand Kubota and Yanmar three-cylinder water-cooled engine has stronger power and better quality. It can be used for small projects, road paving, house construction and so on.
Optional Functions:
The side swing function of the boom allows the excavator to reach corners that cannot be reached by ordinary EXCAVATORS. The telescopic chassis is also a standard feature to ensure better stability of the excavator, and by shrinking the chassis, the excavator can pass through a narrower passage. Finally, although the body is small and exquisite, it can also be equipped with multiple attachments, such as micro grapple, small hole augers, narrow buckets, flat buckets and so on.
Technical Parameters
1050Kg
12Kw
2050mm
1800mm
0.025m³
MODEL
KA12
WEIGHT
Total weight
1050 kg
SIZE
Total length
2300mm
Total width
1000mm
Total height
2250mm
Max digging radius
3050mm
Maxdigging depth
1800mm
Max digging height
2820mm
Maxdumping height
2050mm
Min ground clearance
385mm
Engine brand
YOUP/Kubota/Yanmar
Engine mode
KD2V80/D722/3TNV74F
Output power
12kw/11.8kw/18.2kw
WALKING CHARACTERISTICS
Walking speed
0~1.8km/h
Gradeability
30%

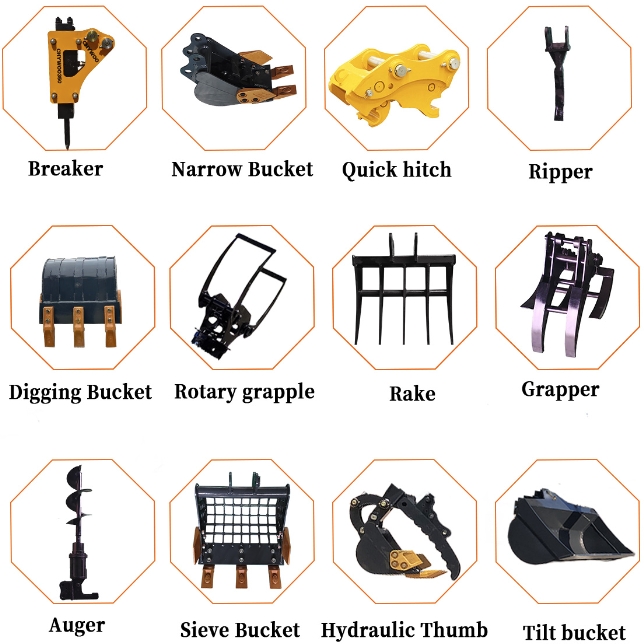

Attachments for the option
