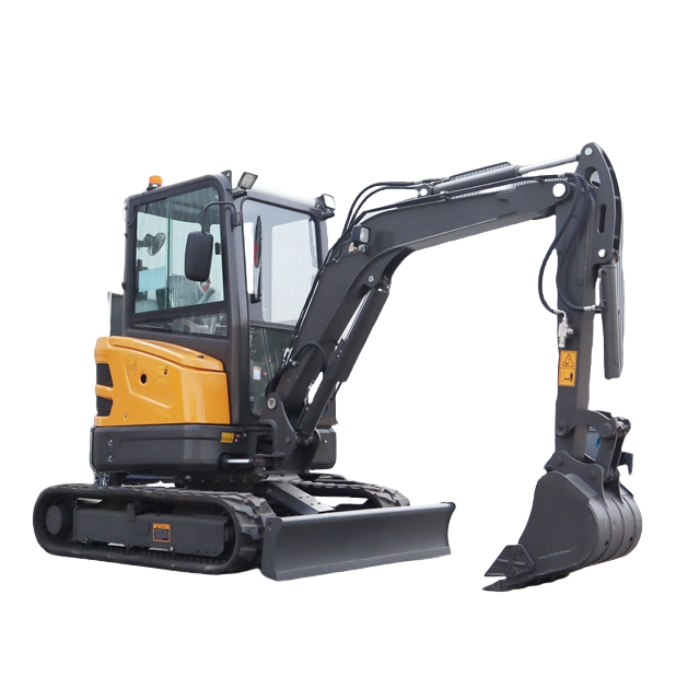

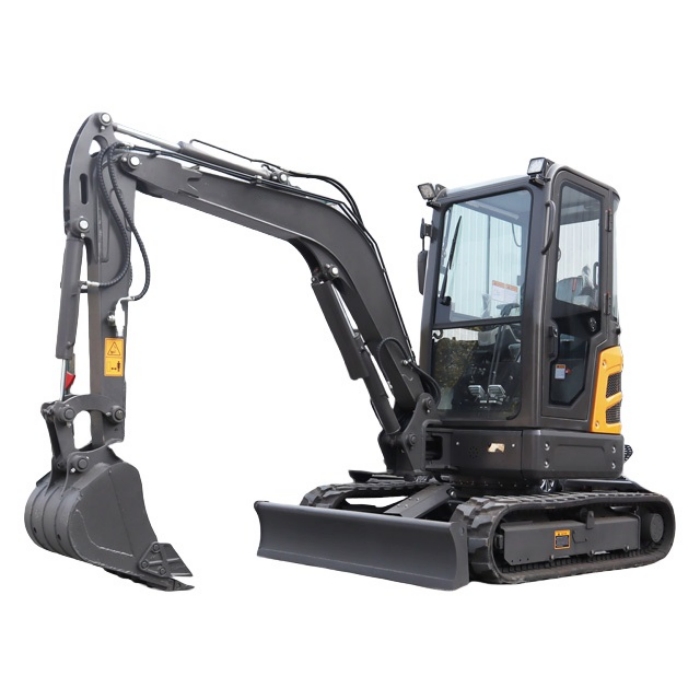

EPA CE Approved KA27 2.8T Tailless Mini Excavator with Closed Cabin and Kubota Diesel engine Product Introduction

KA27 2.8-Ton Tailless Mini Excavator: With a compact and tailless design, 2.8 ton machine weight (Operating weight ±3 ton).This utility and powerful mini excavator is ideal for working in confined places , such as indoor, narrow driveways, alleys, backyards, gardens, and other tight spaces.


Features:

1. Zero tail Compact excavator with compact design
2. Load sensitive hydraulic system
3. Closed cab with Air cooling conditioner
4. Delectable boom
5. Kubota engine Euro V / EPA Tier 4 Engine
6. High and low traveling speed


Technical Parameters



2750Kg
14Kw
3005mm
2830mm
0.1m³

>>MAIN TECHNICAL PARAMETER

ENGINE

Emission Standard

EPA4/EURO 5

Make

KUBOTA

Model

D1105

Power /Rotation speed

14kw(19HP)@2200rpm

Number of cylinder

3

Type

Water cooled, in-line,4-stroke,mechnical pump. Naturally aspirated

Max. torque of engine

70.3Nm/ 1600rpm

Displacement of engine

1.123L

Engine oil capacity

5.1L

TRACK SYSTEM

Maximum Travel speed(High-Low speed)

2.6/4.5km/h

Width of track shoe(Rubber )

300mm

Carrier roller(one side)

1

Support wheel(one side)

3

PERFORMANCE PARAMETER

Standard bucket capacity

0.1m³

Width of standard bucket

500mm

Swing speed

10 rpm

Max. Grade ability

58%

Max. Bucket digging force

23.5KN

Max. Arm digging force

14KN

Hydraulic system pressure

20.5Mpa

Ground pressure

24Kpa

Machine weight

2750kg

Fuel tank capacity

23L

Hydraulic oil tank capacity

24L

Flow of main pump(Variable piston pump)

61.6L/ min

MACHINE SIZE

Overall dimension (L*W*H)

4195mm*1550mm*2480mm

Axle base(Track length on ground)

1565mm

Track gauge

1250mm

Min.Ground clearance

286mm

Swing radius at tail

860mm

Boom length

2200mm

Arm length

1300mm

WORKING RANGE

Max. Digging height

4427mm

Max. Dumping height

3005mm

Max. Digging depth

2830mm

Max. Vertical digging depth

2530mm

Max. Digging radius

4835mm

Min .swing radius at front

2160mm

Max. Lifting height of blade

308mm

Max. Cutting depth of blade

363mm

Boom swing angle(Left)

69°

Boom swing angle(Right)

45°

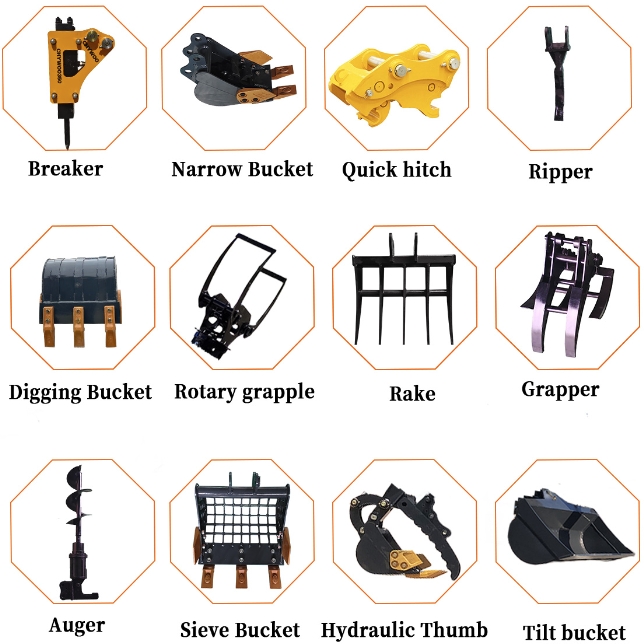

Optional Attachments
