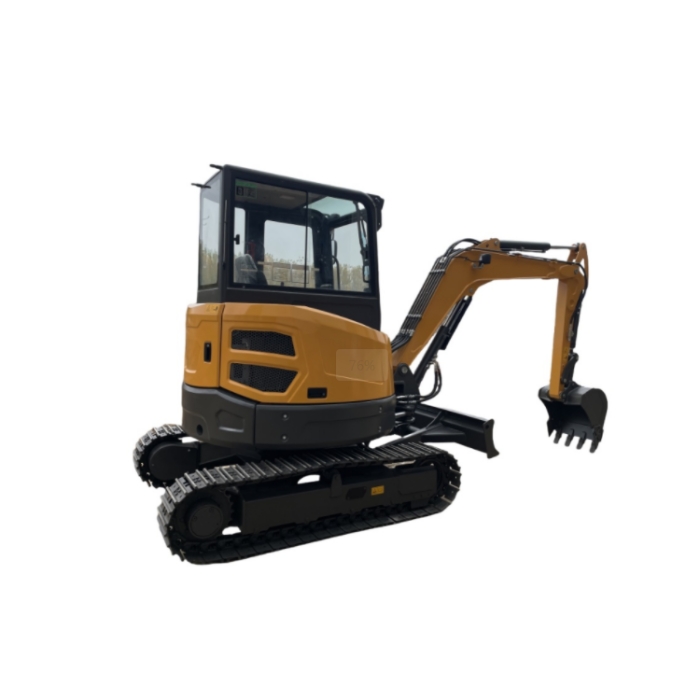

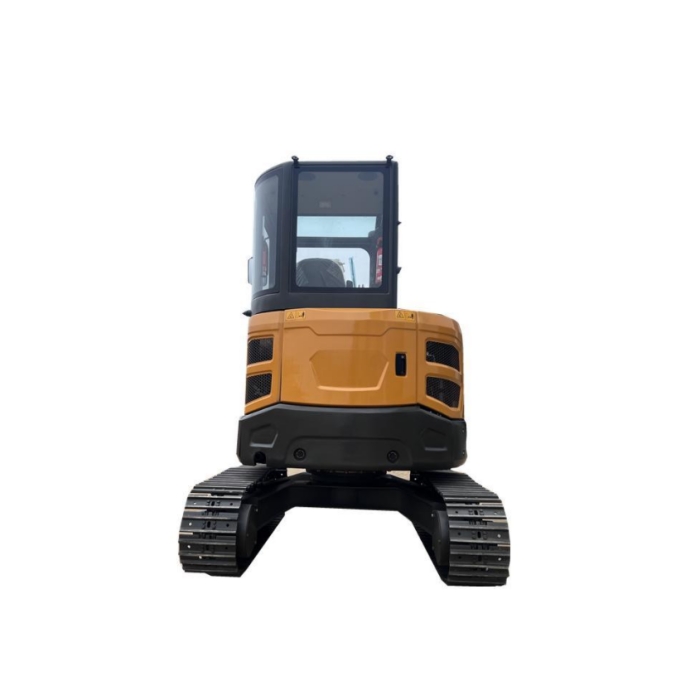

Compact Excavator KA40 with operating weight 4 ton is one of the hot-selling model with closed cab and air-conditioner. It is favored for its excellent performance and applicability. The excavator weighs 3.9 tons and is equipped with a Kubota engine. It has excellent characteristics such as low fuel consumption, low noise and low vibration, and is suitable for various operating scenarios. Among them, our KA40 mini excavator performs outstandingly for its safety and comfort-ability. It is equipped with a roof, cab and seat belts to effectively ensure the safety of the driver, making the driver feel more at ease and comfortable when working. This design is crucial to ensuring the safety of the workplace and provides users with confidence and security.
Features:
1. Zero tail swing / Tailless design
2. Load sensing hydraulic system
3. Closed cabin with AC
4. Swing boom
5. High and low traveling speed
6. Kubota D1703 EPA/Euro V diesel engine
Technical Parameters
>>MAIN TECHNICAL PARAMETER
ENGINE
Emission Standard
Euro 5,EPA4
Make /Model
KUBOTA /D1703
Power /Rotation speed
18.2kw(25HP)@2200rpm
Number of cylinder
3
Type
In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated
Max.torque
97.4N.m/1500rpm
Displacement
1.642L
TRACK DRIVING SYSTEM
Maximum Travel speed(High/low)
4.4/2.4km/h
Width of steel track shoe
300mm
Carrier roller(Each side)
1
Supporting roller(Each side)
4
PERFORMANCE PARAMETER
Standard Bucket capacity
0.12m³
Swing speed
12rpm
Maximum Grade ability
58%(30°)
Ground pressure
32Kpa
Maximum Bucket digging force
30.4KN
Maximum Arm digging force
18.2KN
Hydraulic system pressure
22.5Mpa
Machine weight
3810kg
Boom length
2535mm
Arm length
1400mm
Fuel tank capacity
40L
Hydraulic oil tank capacity
44L
Engine oil capacity
7L
Radiator capacity
3.8L
Final drive
2*0.7L
MACHINE SIZE
Overall dimension (L*W*H)
4915mm*1720mm*2525mm
Axle base(Track length on ground)
1670mm
Length of rubber track
2154mm
Track gauge
1420mm
Minimum Ground clearance
295mm
Swing radius at tail
860mm
Swing radius at front
2538mm
Height of blade
350mm
WORKING RANGE
Maximum Digging height
4800mm
Maximum Dumping height
3406mm
Maximum Digging depth
3208mm
Maximum Vertical digging depth
2957mm
Maximum Digging distance(working radius)
5480mm
Maximum digging distance (on ground)
5359mm
Minimum swing radius
2530mm
Max.height when min.swing radius
3655mm
Maximum Lifting height of blade
365mm
Maximum Cutting depth of blade
385mm
Boom swing angle(Left/Right)
55°/65°
3930Kg
18.2Kw
3406mm
3208mm
0.12m³

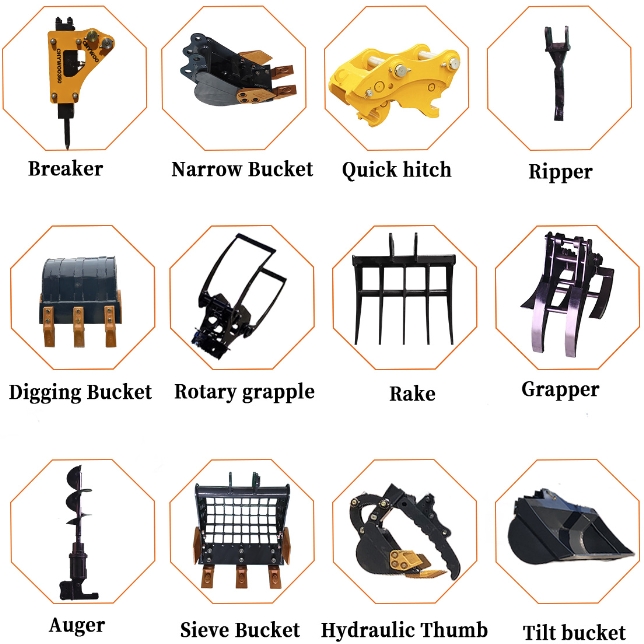

Attachments for the option
