Mini skid steer loaders (namely compact utility loaders, mini tracked loaders, stand on crawler skid steers) have a simple product structure, good cost performance and low cost of use; the series has a compact design and a small width of the main machine, which has good pass-ability; the variable width working arm is used.Mini skid steer loaders have a simple product structure, good cost performance and low cost of use; the series has a compact design and a small width of the main machine, which has good pass-ability; the variable width working arm is used. Matching with various attachments, they could carry out many different functions for the works. They are widely used in construction, landscaping, agriculture industry etc.
Features of our KA series Mini skid steer loaders:
1. Compact and flexible: Small skid steer loaders are small in size and light in weight, making them easy to operate in narrow construction sites or indoor spaces.
2. Strong versatility: The small skid steer loader can be configured with different accessories and interfaces according to needs to achieve multiple functions, such as excavating, leveling, pushing soil, pile driving, tamping, etc., which can be easily replaced.
3. Simple and easy to learn: The operation of the small skid steer loader is relatively simple, and only short technical training is needed to get started.
4. Eco-friendly and energy-saving: Since the small skid steer loader adopts electric or hybrid power, the noise and tailpipe emissions during operation are lower, which meets environmental protection and energy-saving requirements.
5. Low maintenance cost: Small skid steer loaders usually have a simple structure, relatively few parts, and are easy to disassemble, making them easy to maintain and reduce operating costs.
Therefore, the small skid steer loader has become an important tool in various fields such as construction, road maintenance, and agricultural production, and is highly favored by users.
TECHNICAL PARAMETERS
|
KASL-T360 |
|
|
Performance Parameters |
|
|
Engine brand |
KOOP/RATO/Briggs&Stratton |
|
Rate power (KW) |
10/15/13.5 |
|
Numbers of cylinders |
1 |
|
Air in-take |
Naturally aspirated |
|
Fule type |
Diesel/Gasoline/Gasline |
|
Emission standard |
Euro 5/EPA/EPA |
|
Rated load capacity (Kg) |
200 |
|
Max load capacity (Kg) |
300 |
|
Max digging force (KN) |
3.5 |
|
Bucket capacity (m3) |
0.12 |
|
Traveling speed (km/h) |
0-6 |
|
Working pressure (Mpa) |
17-21 |
|
Fuel tank (L) |
5 |
|
Operating weight (Kg) |
900 |
|
Dimension and Operating range |
|
|
Overall length without bucket (mm) |
1550 |
|
Overall width (mm) |
930 |
|
Overall height (mm) |
1360 |
|
Length with standard bucket (mm) |
2100 |
|
Standard bucket width (mm) |
1000 |
|
Wheel base (mm) |
850 |
|
Groud clearance (mm) |
150 |
|
Track width (mm) |
180 |
|
Rear length (mm) |
280 |
|
Height to bucket hinge pin |
1870 |
|
Height to fully raised flat bucket (mm) |
1810 |
|
Max operating height (mm) |
2450 |
|
Dumping angle @Max height (degree °) |
34 |
|
Dumping height (mm) |
1510 |
|
Dumping distance (mm) |
450 |
|
Bucket tipping angle @ Max height (degree °) |
114 |

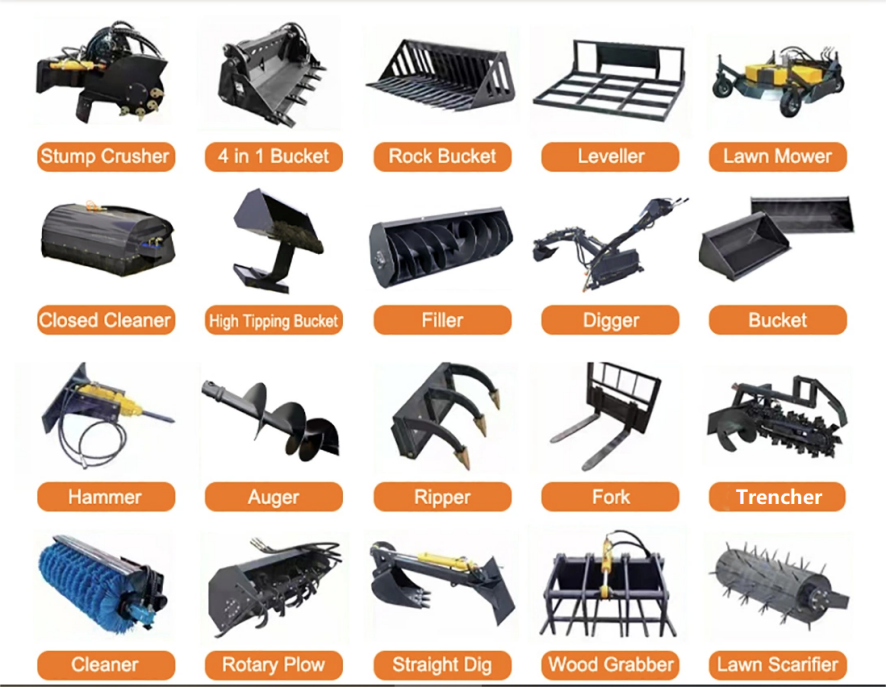

VARIOUS ATTACHMENTS FOR THE OPTION
