Mini skid steer loaders (namely compact utility loaders, mini tracked loaders, stand on crawler skid steers) have a simple product structure, good cost performance and low cost of use; the series has a compact design and a small width of the main machine, which has good pass-ability; the variable width working arm is used.Mini skid steer loaders have a simple product structure, good cost performance and low cost of use; the series has a compact design and a small width of the main machine, which has good pass-ability; the variable width working arm is used. Matching with various attachments, they could carry out many different functions for the works. They are widely used in construction, landscaping, agriculture industry etc.
KA series Mini skid steer loaders model numbers:KASL-T360, KASL-T460, KASL-T480, KASL-T750
Features of our KA series Mini skid steer loaders:
1. Compact and flexible: Small skid steer loaders are small in size and light in weight, making them easy to operate in narrow construction sites or indoor spaces.
2. Strong versatility: The small skid steer loader can be configured with different accessories and interfaces according to needs to achieve multiple functions, such as excavating, leveling, pushing soil, pile driving, tamping, etc., which can be easily replaced.
3. Simple and easy to learn: The operation of the small skid steer loader is relatively simple, and only short technical training is needed to get started.
4. Eco-friendly and energy-saving: Since the small skid steer loader adopts electric or hybrid power, the noise and tailpipe emissions during operation are lower, which meets environmental protection and energy-saving requirements.
5. Low maintenance cost: Small skid steer loaders usually have a simple structure, relatively few parts, and are easy to disassemble, making them easy to maintain and reduce operating costs.
Therefore, the small skid steer loader has become an important tool in various fields such as construction, road maintenance, and agricultural production, and is highly favored by users.
Your Trustworthy Mini Skid Steer Loader Supplier in China
Shandong Kuangan Heavy Industry Co., LTD. is one professional mini skid steer loader manufacturer and supplier with numerous product models (standard type, wheel type, crawler type, etc.) to meet the different needs of customers. OEM service is available.
TECHNICAL PARAMETERS
KASL-T460
Performance Parameters
Engine brand
KOOP/RATO/Briggs&Stratton/KOOP
Rate power (KW)
14/18.4/16.9
Numbers of cylinders
2
Air in-take
Naturally aspirated
Fule type
Diesel/Gasoline/Gasoline
Emission standard
Euro 5
Rated load capacity (Kg)
300
Max load capacity (Kg)
400
Max digging force (KN)
4.5
Bucket capacity (m3)
0.12
Traveling speed (km/h)
0-6
Working pressure (Mpa)
17-21
Fuel tank (L)
10
Operating weight (Kg)
1000
Dimension and Operating range
Overall length without bucket (mm)
1680
Overall width (mm)
1030
Overall height (mm)
1360
Length with standard bucket (mm)
2206
Standard bucket width (mm)
1000
Wheel base (mm)
850
Groud clearance (mm)
150
Track width (mm)
180
Rear length (mm)
280
Height to bucket hinge pin
1870
Height to fully raised flat bucket (mm)
1810
Max operating height (mm)
2450
Dumping angle @Max height (degree°)
34
Dumping height (mm)
1510
Dumping distance (mm)
450
Bucket tipping angle @ Max height (degree °)
114

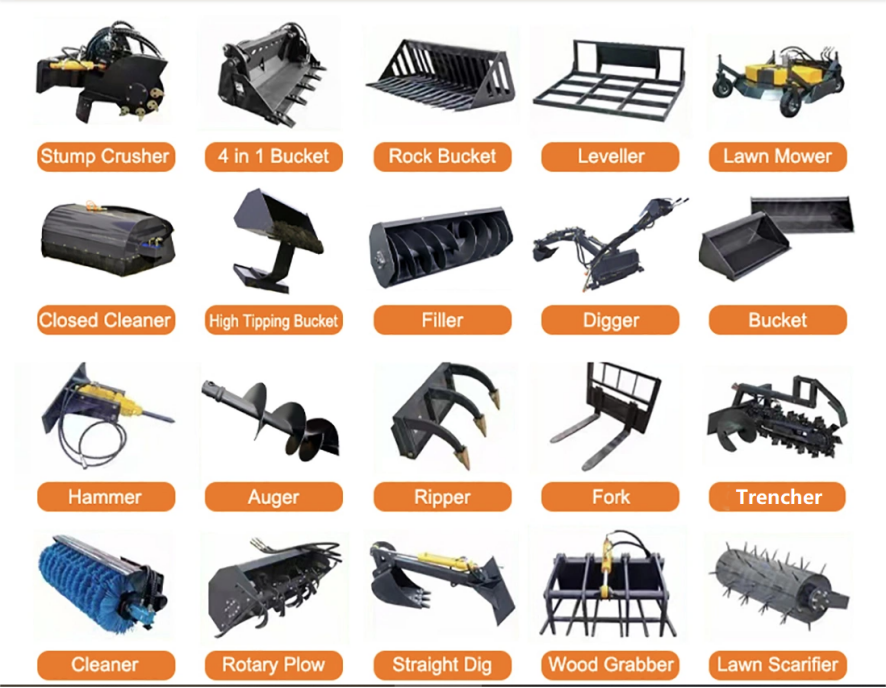

VARIOUS ATTACHMENTS FOR THE OPTION
