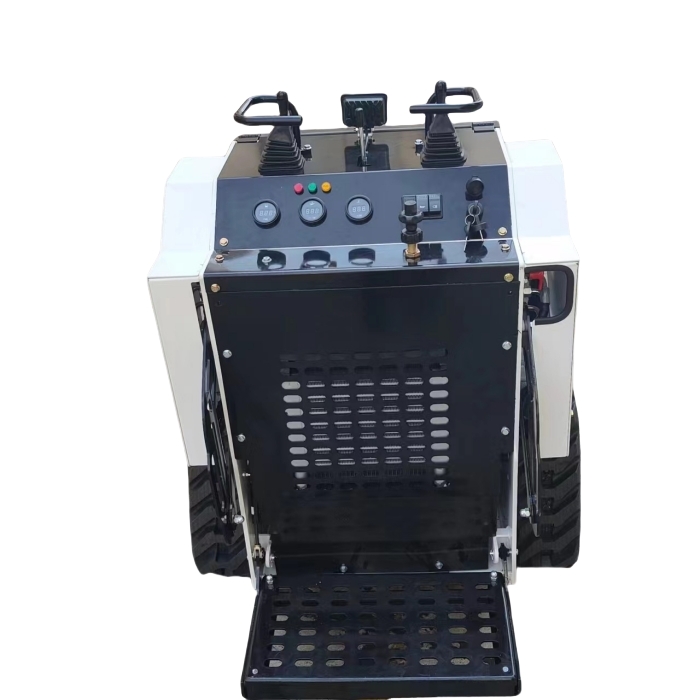

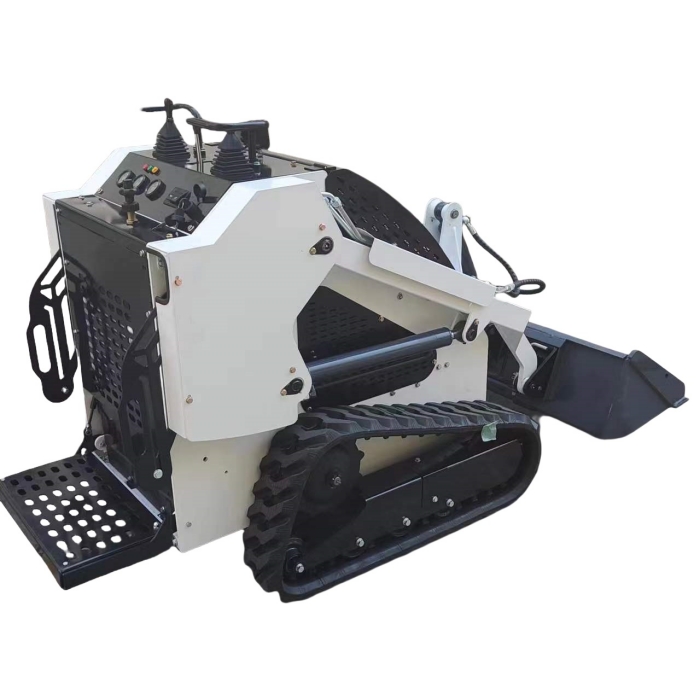

Our KA Series Compact Tracked Loaders could be customized as per different requirements from the world buyers. After sale, the warranty is 1 Year / 1000 Hours.
Your Trustworthy Mini Skid Steer Loader Supplier in China - Shandong Kuangan Heavy Industry Co., LTD. is one professional mini skid steer loader manufacturer and supplier with numerous product models (standard type, wheel type, crawler type, etc.)
TECHNICAL PARAMETERS
KASL-T480
Performance Parameters
Engine brand
Yanmar 380
Rate power (KW)
17.8
Numbers of cylinders
3
Air in-take
Naturally aspirated
Fule type
Diesel
Emission standard
EPA
Rated load capacity (Kg)
350
Max load capacity (Kg)
480
Max digging force (KN)
4.5
Bucket capacity (m3)
0.12
Traveling speed (km/h)
0-6
Working pressure (Mpa)
17-21
Fuel tank (L)
13
Operating weight (Kg)
1200
Dimension and Operating range
Overall length without bucket (mm)
1680
Overall width (mm)
1030
Overall height (mm)
1360
Length with standard bucket (mm)
2206
Standard bucket width (mm)
1000
Wheel base (mm)
850
Groud clearance (mm)
150
Track width (mm)
180
Rear length (mm)
280
Height to bucket hinge pin
1870
Height to fully raised flat bucket (mm)
1810
Max operating height (mm)
2450
Dumping angle @Max height (degree°)
34
Dumping height (mm)
1510
Dumping distance (mm)
450
Bucket tipping angle @ Max height (degree °)
114

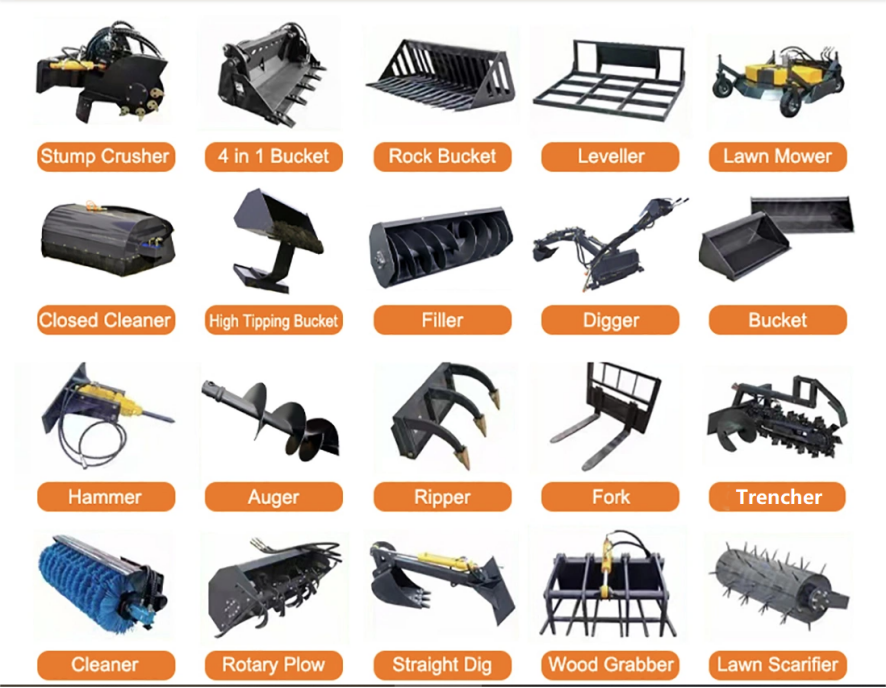

VARIOUS ATTACHMENTS FOR THE OPTION
