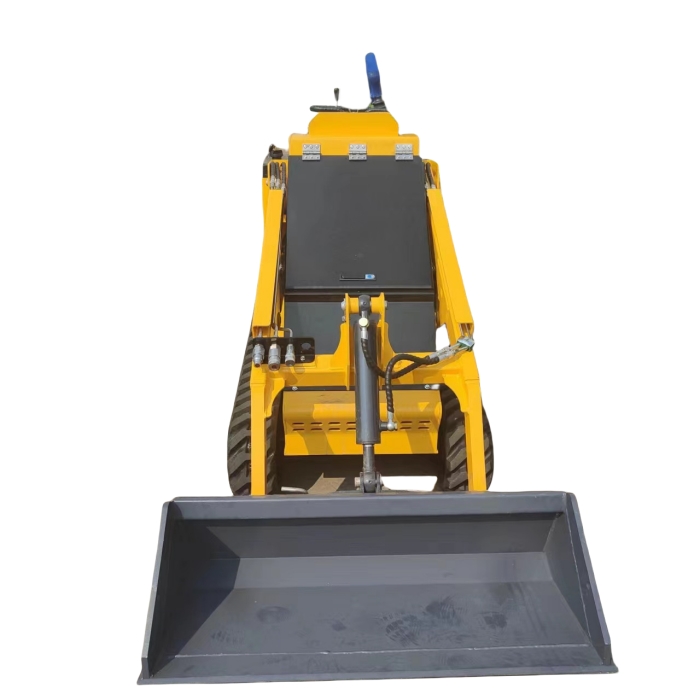

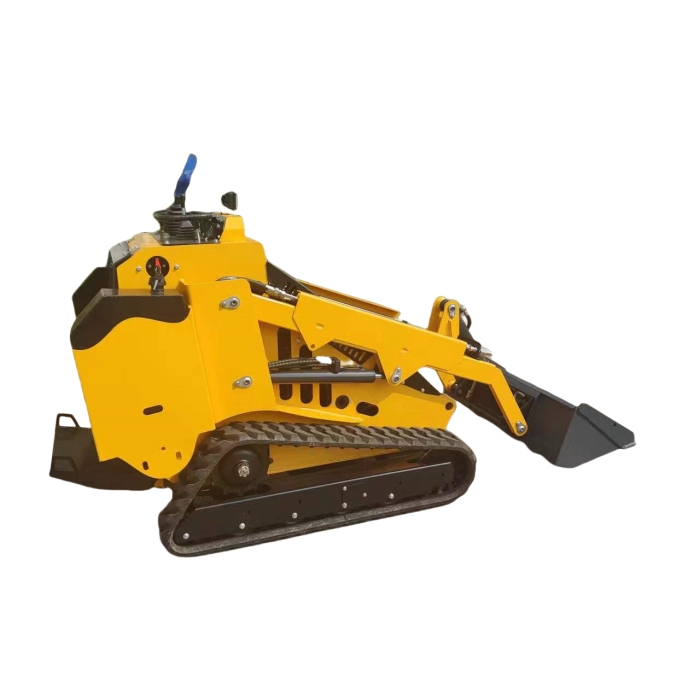

Best-selling model KASL-T750 is powered with one strong Yanmar 3 cylinders water-cooled diesel engine. Compared with the other models, it more powerful on performance, which make it outperform on any jobsite. Featuring a high-drive track system and an enhanced operator’s station, it delivers superior performance through increased ground clearance, more lift capacity, faster ground speed, longer track life, and more operator comfort. And with more horsepower to the attachment than the competition, the KASL-T750 will help make you more productive and more profitable, job after job.
Our KA Series Compact Tracked Loaders could be customized as per different requirements from the world buyers. After sale, the warranty is 1 Year / 1000 Hours.
Your Trustworthy Mini Skid Steer Loader Supplier in China - Shandong Kuangan Heavy Industry Co., LTD. is one professional mini skid steer loader manufacturer and supplier with numerous product models (standard type, wheel type, crawler type, etc.)
TECHNICAL PARAMETERS
KASL-T750
Performance Parameters
Engine brand
Yanmar 380
Rate power (KW)
17.8
Numbers of cylinders
3
Air in-take
Naturally aspirated
Fule type
Diesel
Emission standard
EPA
Rated load capacity (Kg)
400
Max load capacity (Kg)
450
Max digging force (KN)
4.5
Bucket capacity (m3)
0.15
Traveling speed (km/h)
0-6
Working pressure (Mpa)
18-25
Fuel tank (L)
30
Operating weight (Kg)
1200
Dimension and Operating range
Overall length without bucket (mm)
2100
Overall width (mm)
1070
Overall height (mm)
1540
Length with standard bucket (mm)
2700
Standard bucket width (mm)
1100
Wheel base (mm)
1080
Groud clearance (mm)
180
Track width (mm)
180
Rear length (mm)
280
Height to bucket hinge pin
2160
Height to fully raised flat bucket (mm)
2100
Max operating height (mm)
2900
Dumping angle @Max height (degree°)
34
Dumping height (mm)
1600
Dumping distance (mm)
450
Bucket tipping angle @ Max height (degree °)
114

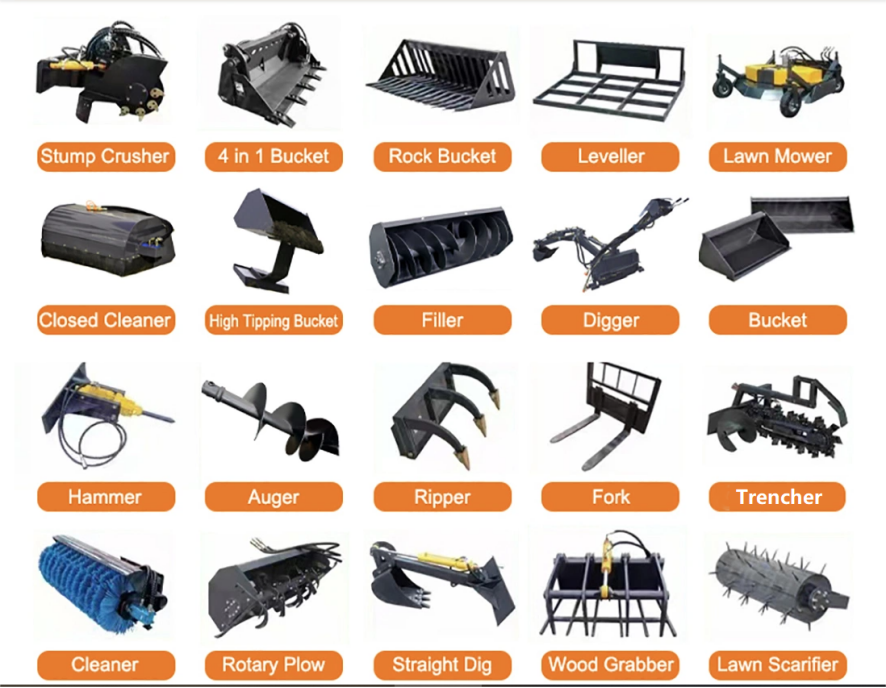

VARIOUS ATTACHMENTS FOR THE OPTION
