Mini dumper is mainly composed of hopper and walking chassis, simple operation and easy maintenance, which adapt to a wider range of different road conditions. The mini crawler dumper is a special hopper that can be tilted over a short-haul conveying material. The body is fitted with a "bucket" container that can be flipped for easy unloading. It is suitable for short-haul transportation of various bulk materials such as gravel, earthwork, coal, ore, etc. It usually has the mechanical return function.

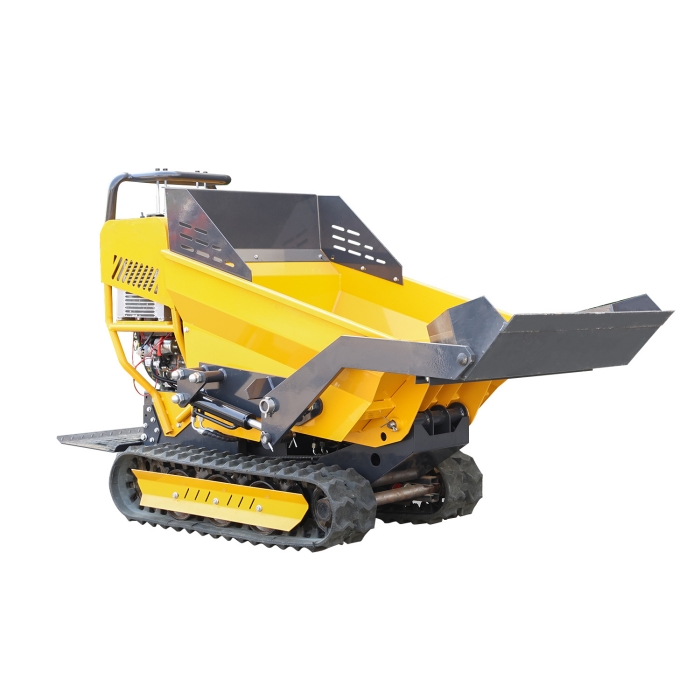

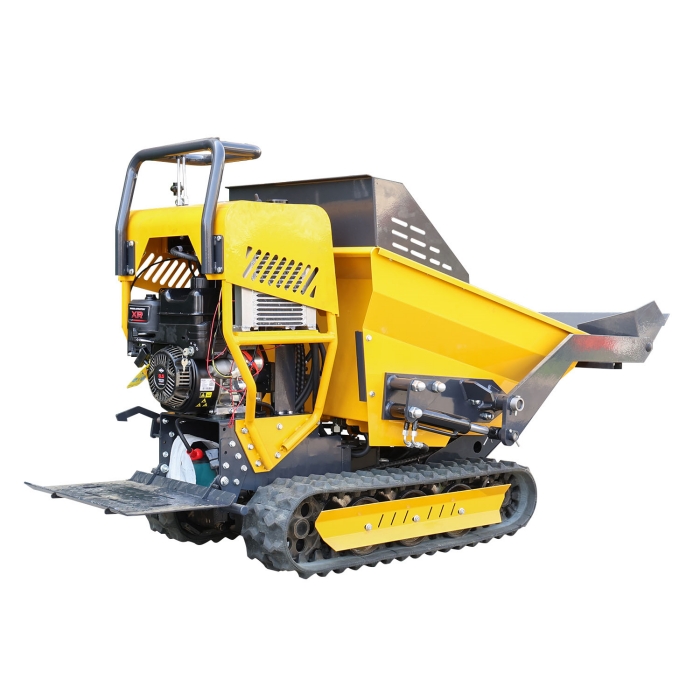

KADT05 Hydraulic Crawler Mini Dumper with load capacity 500kg could be customized as per the buyers` different requirements. Normally, there is lifting function for the option. If there is other funcation needed, please contact us for it.
TECHNICAL PARAMETERS
|
KADT05 Mini Dumper |
|
|
Engine |
|
|
Engine Brand & Model |
BRIGGS&STRATTON Vanguard 200 |
|
Engine type |
1-cylinder 4-stroke OHV Gasoline engine |
|
Displacement (CC) |
203 |
|
Rated power |
6.5HP @3600rpm |
|
Fuel type |
92# Gasoline |
|
Fuel consumption (g/kw*h) |
<0.395 |
|
Fuel tank (L) |
3.6 |
|
Engine oil (L) |
0.6 |
|
Machine parameters |
|
|
Weight (Kg) |
442 |
|
Load capacity Max. (Kg) |
500 |
|
Transmission |
Hydraulic |
|
Bucket Tilting |
Hydraulic |
|
Dimension (mm) (without pedal and bucket) |
1570*880*1300 |
|
Dimension (mm) (with pedal and bucket) |
2050*880*1300 |
|
Box size (mm) |
1050*730*730 |
|
Chasis width (mm) |
700 |
|
Travelling speed forwards Max. (Km/h) |
4.2 |
|
Travelling speed backwards Max. (Km/h) |
1.1 |
