Crawler dump truck is a special type of truck that uses tracks as a drive instead of traditional tires. This type of vehicle is typically used to transport cargo in harsh terrain or roadless areas.
The crawler dump truck has two main features following: 1.Strong off-road capabilities and excellent handling capabilities, which make it it can easily negotiate mud, rough terrain, and even snow or deserts. This makes it very useful on construction sites, mining sites and agricultural fields where goods need to be transported in harsh environments. 2.The self-unloading function of this vehicle makes loading and unloading cargo more convenient. It usually comes with a tilting cargo box that allows cargo to be dumped out easily. This is very useful for transporting large quantities of bulk materials such as soil, ore, sand and gravel, etc.The crawler dump truck is a powerful and adaptable truck, especially suitable for situations where goods need to be transported in harsh terrain conditions. Its off-road capabilities, handling capabilities and self-unloading capabilities make it widely used in a variety of industries.
TEHCNICAL PARAMETERS
Model
KADT-10
KADT-20S
KADT-20
KADT-30
KADT-35
KADT-40
Photo for reference
Length*width*height (mm)
2050*800*1130
2000*1170*1260
2800*1200*1500
3180*1450*1500
3300*1550*1500
3480*1650*2050
Cargo box (mm)
1200*750*450
1300*1100*500
1600*1200*500
1900*1400*500
2100*1500*500
2200*1500*600
Engine Brand
Koop
Koop
Changchai
Changchai
Changchai
Weichai
Engine model
186F
192F
ZS1105M
L25M
L32M
490Y4-2 turbo
Engine power KW
6.6
9
13.34
16
22.12
42
Engine pwer HP
9
12.24
18.14
25
32
57.12
Transmissin gearbox
GULI13
GULI18
GULI18
GULI21
GULI21
GULI21
Gear shift
Forward 3/Reverse 1
Forward 3/Reverse 1
Forward 3/Reverse 1
Forward 3/ Reverse 1, with High and low speed switch
Forward 3/ Reverse 1, with High and low speed switch
Forward 3/ Reverse 1,with high and low speed switch
Crawler type
Rubber
Rubber
Construction Use Rubber
Rubber
Rubber
Construction Use Rubber
Crawler size(mm)
180*72*38
230*72*46
230*72*56
230*72*62
350*90*56
320*90*56
Chassis width (mm)
850
1000
1200
1550
1550
1510
Track ground length (mm)
1100mm
1100mm
1400mm
1800mm
1780mm
1860mm
Number of track rollers
6 pcs
10 pcs
12 pcs
24 pcs
28 pcs
32 pcs
Number of unilateral tugs
3 groups
5 groups
6 groups
6 groups
7 groups
8 groups
Hydraulic Self-unloading function
Yes (double cylinder)
Yes (double cylinder)
Yes
Yes
Yes
Yes
Traveling speed max.(Km/h)
12km/h
12km/h
12kn/h
12kn/h
15km/h
15km/h
Traveling speed min. (Km/h)
5km/h
5km/h
5km/h
5km/h
5km/h
5km/h
Drive mode
Mechanical drive
Mechanical drive
Mechanical drive
Mechanical drive
Mechnical drive
Mechanical drive
Load capacity (Metric ton)
1 ton
2 ton
2 ton
3 ton
3.5 ton
4 ton
Machine weight (Kg)
600kg
700kg
904kg
1350kg
1400kg
1600kg
Ground clearance of cargo box (cm)
50cm
50cm
60cm
56cm
65cm
58cm
Maximum parking angle of slope (°)
35
35
35
35
35
35
Maximum climbing angle of slope (°)
45
45
35
35
35
35
Starting method
Electric/Recoil
Electric/Recoil
Electric/Recoil
Electric/Recoil
Electric/Recoil
Electric
Sunroof
No
NO
NO
NO
NO
Yes
Dumper truck rear axle
No
NO
NO
NO
NO
NO
Model
KADT-40pro
KADT-50
KADT-60
KADT-80
KADT-100
KADT-100F
Photo for reference
Length*width*height (mm)
3792*1768*2297
3500*1700*2050
3700*1700*2080
4030*2060*2300
4300*2200*2350
4520*2200*2646
Cargo box (mm)
2200*1600*500
2200*1500*600
2400*1500*600
2700*2000*550(Thicker)
2800*2000*600(thicker)
2800*2200*700(thicker)
Engine Brand
Changchai
Weichai
Weichai
Weichai
Yuchai
Xichai Power
Engine model
ZN490B
4105 turbo
4105 turbo
4102
4102 turbo
6DF2-24
Engine power KW
34
68
68
68
80
176
Engine pwer HP
46.2
92.48
92.48
92.48
110
239.3
Transmissin gearbox
Yunzhou YZ-80
GULI23
GULI29
Dongfeng145
WANLIYANG545
A6VE55+GFT17
Gear shift
Forward 3/ Reverse 3
Forward 3/ Reverse 1,with high and low speed switch
Forward 3/ Reverse 1,with high and low speed switch
Forward 5 + Reverse 1
Forward 5 + Reverse 1
Forward 1 + Reverse 1, High and low speed
Crawler type
Construcion Use Rubber
Construction Use Rubber
Construction Use Rubber
Construction Use Rubber
Construction Use Rubber
Construction Use Rubber
Crawler size(mm)
400*90*56
320*90*56
320*90*56
400*90*70
450*90*70
500*90*82
Chassis width (mm)
1768
1510
1510
2200
2200
2200
Track ground length (mm)
1768mm
1860mm
1860mm
2200mm
2200mm
2200mm
Number of track rollers
24 pcs
32 pcs
32 pcs
32 pcs
32 pcs
40 pcs
Number of unilateral tugs
6 groups
8 groups
8 groups
8 groups
8 groups
10 groups
Hydraulic Self-unloading function
Yes
Yes
Yes (double cylinder)
Yes (double cylinder)
Yes (double cylinder)
Yes (double cylinder)
Traveling speed max.(Km/h)
10km/h
15km/h
15km/h
25km/h
25km/h
15km/h
Traveling speed min. (Km/h)
7km/h
5km/h
5km/h
10km/h
10km/h
0km/h
Drive mode
Mechnical drive
Mechanical drive
Mechanical drive
Mechanical drive
Mechanical drive
Mechanical drive
Load capacity (Metric ton)
4 ton
5 ton
6 ton
8 ton
10 ton
10 ton
Machine weight (Kg)
2000kg
1700kg
1900kg
3900kg
4200kg
5500kg
Ground clearance of cargo box (cm)
72cm
58cm
58mm
78cm
95cm
90cm
Maximum parking angle of slope (°)
35
35
35
35
35
35
Maximum climbing angle of slope (°)
35
35
35
35
35
35
Starting method
Electric start
Electric
Electric/Recoil
Electric
Electric
Electric start
Sunroof
Yes
Yes
Yes
Yes (semi-enclosed)
Yes (semi-enclosed)
Yes (Closed cab with air conditioner)
Dumper truck rear axle
NO
NO
NO
Yes (Dongfeng 1098)
Yes (Dongfeng 153)
NO
Parameter
Parameter
CUSTOMIZATION AVAILABLE

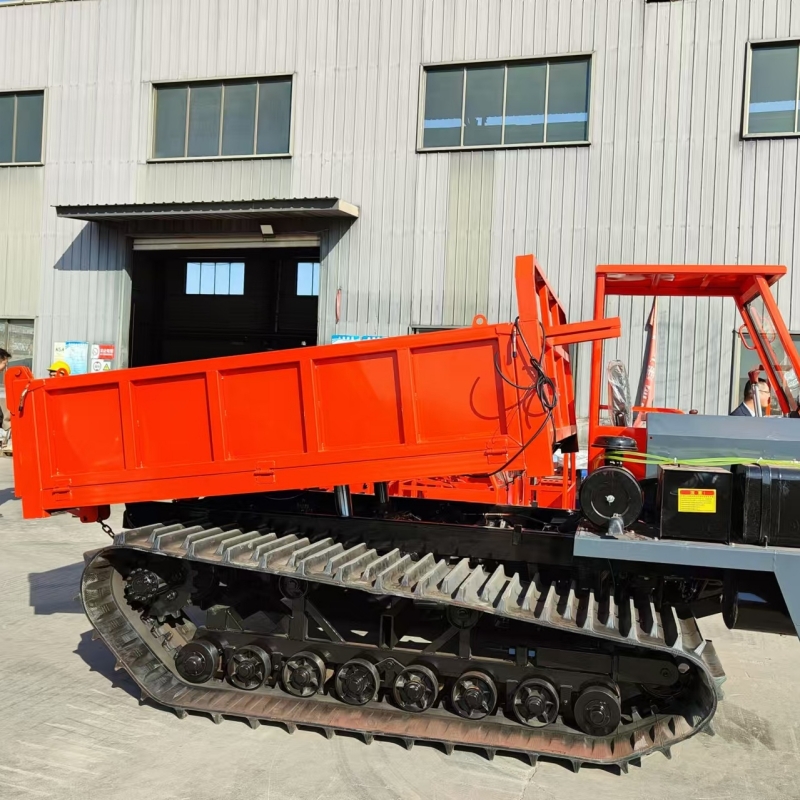

01 Wider track

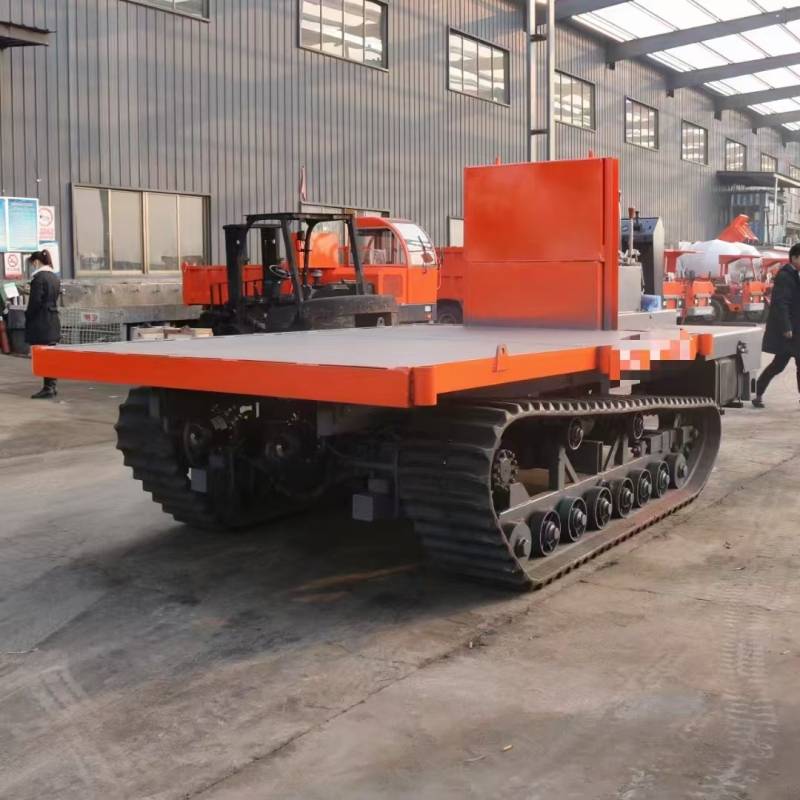

02 Flat trailer
03 Hydraulic outriggers

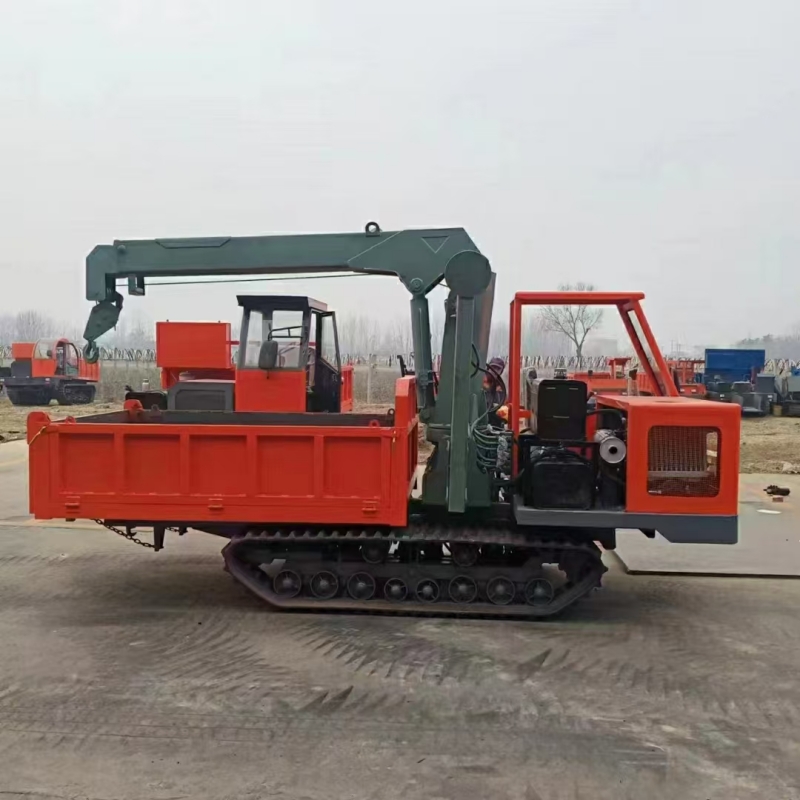

04 Crane

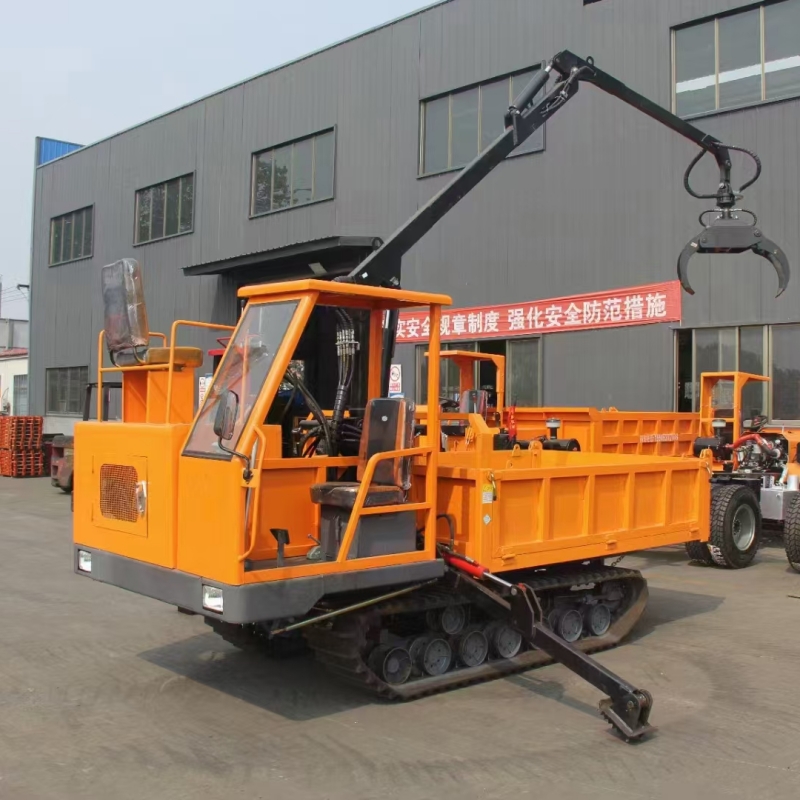

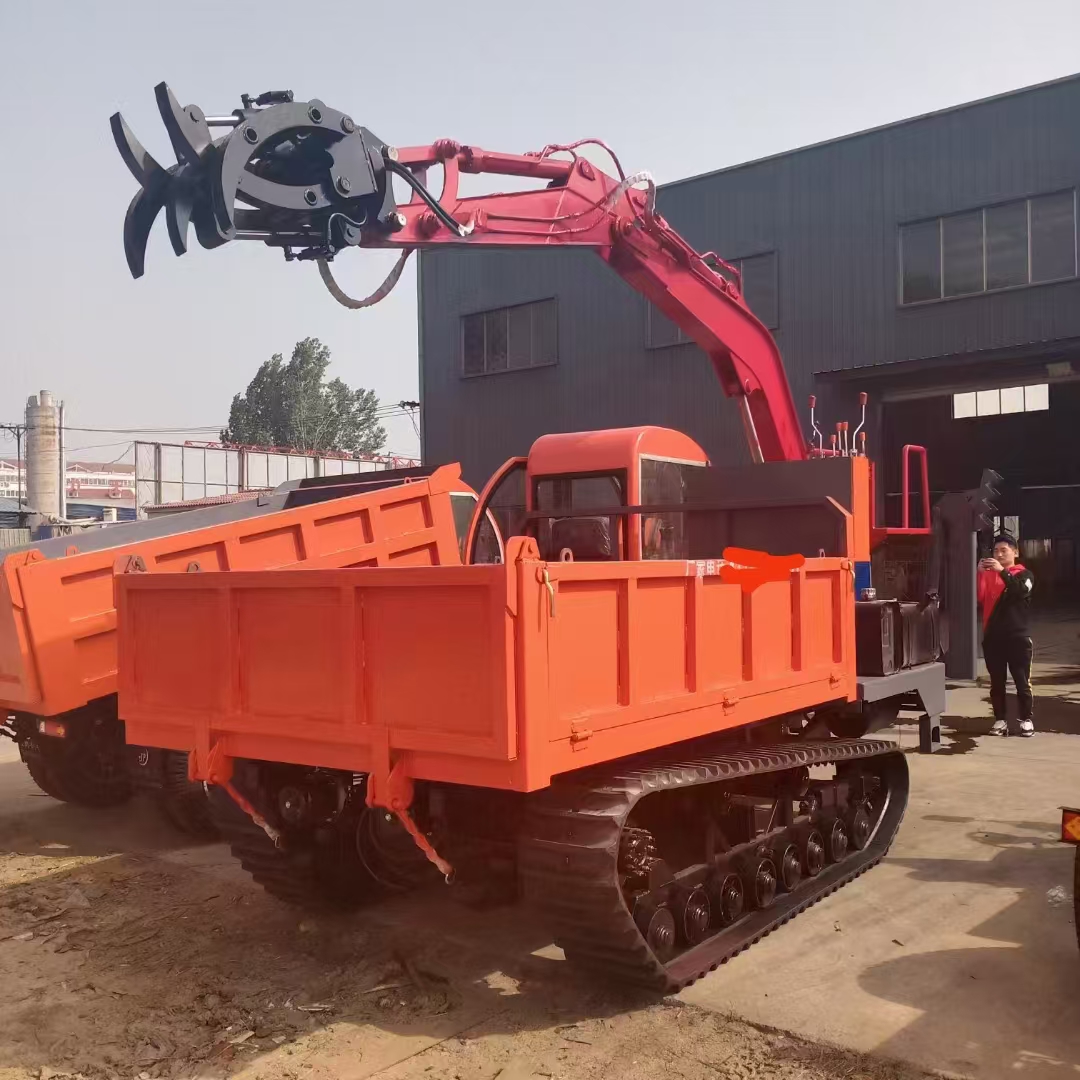

05 Log grapper

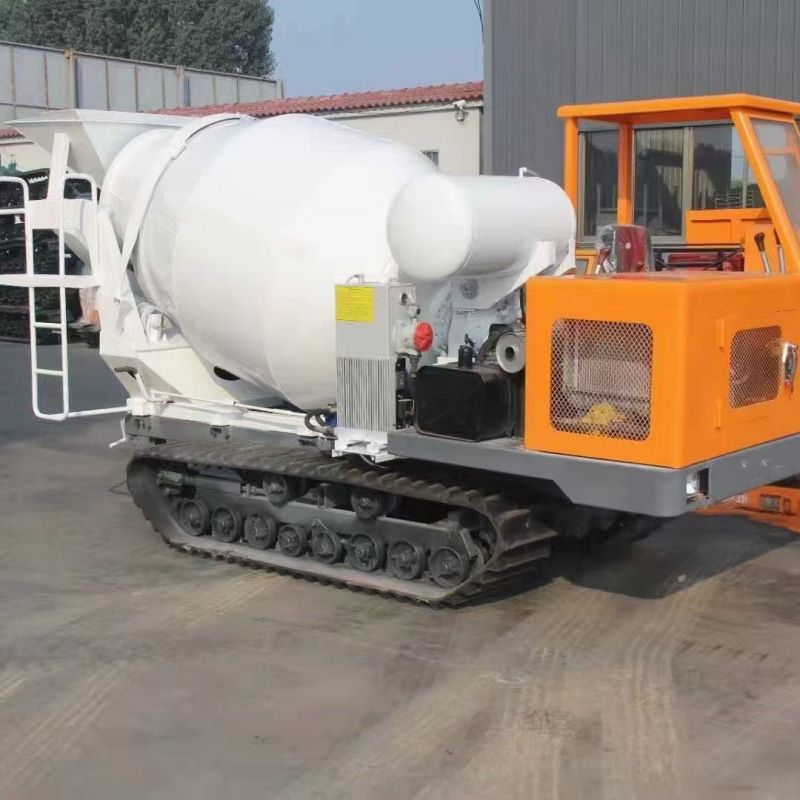

06 Concrete mixer
