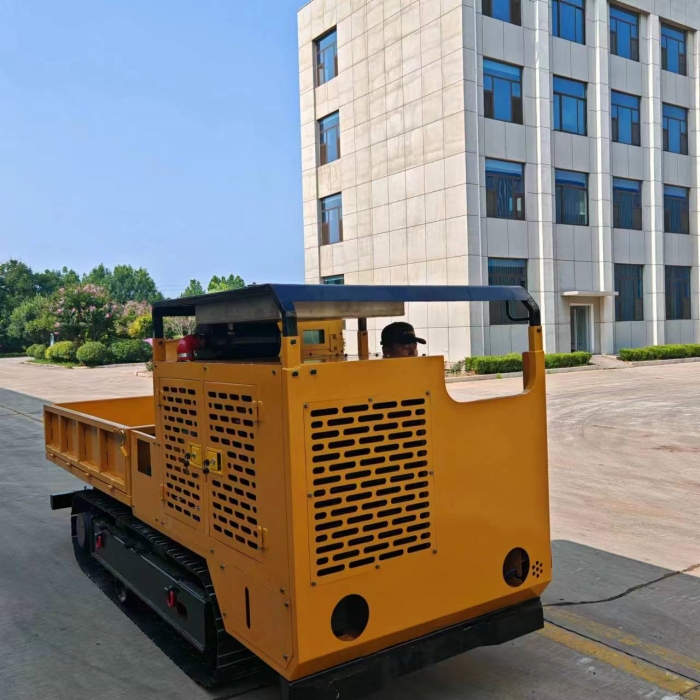

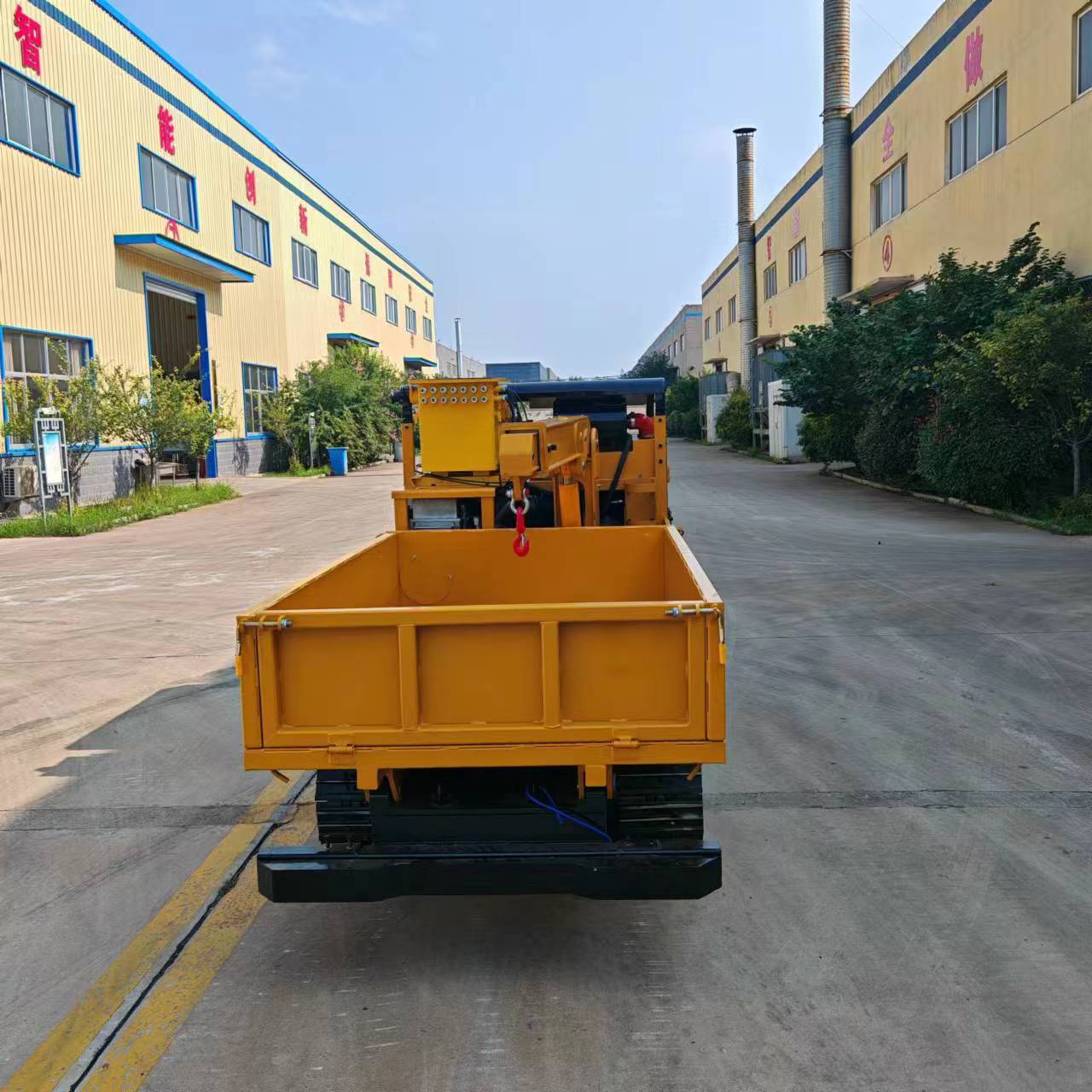

Explosion proof Crawler Dumper Trucks WCL5YY With Load Capacity 5 Tons, Special Underground Transporting Vehicles for mining industry. Product Introduction
Explosion proof crawler dumper (CRAWLER CARRIER) is powered by a National III explosion-proof diesel engine and adopts full hydraulic transmission. It is mainly used for loading and unloading of underground coal and equipment handling. Its use greatly reduces the labor intensity of workers and improves the operating safety of underground coal miners.

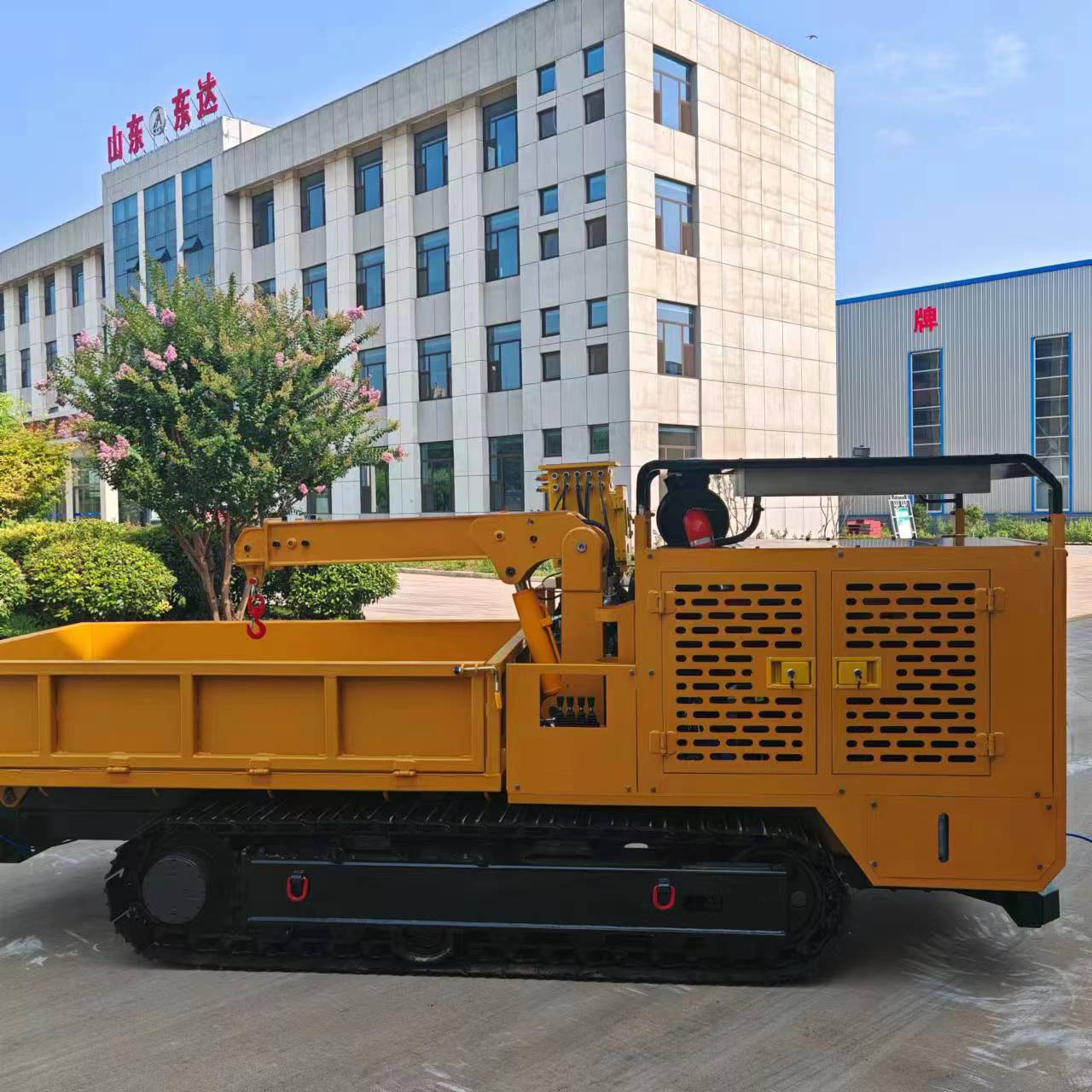

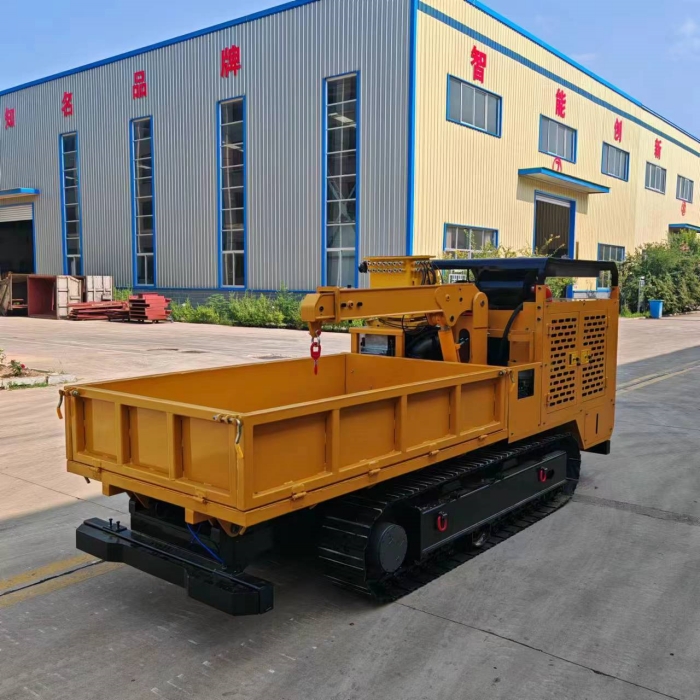

The vehicle is equipped with a 360° lifting arm and dump cargo box, and the maximum load of the vehicle can be customized as required.

It can drive in both directions, front and rear, effectively solving the problem of insufficient space inside the tunnel and inconvenient turning.

360-degree rotating boom, with boom telescopic and pitching functions, wide range of lifting operations, realizing mechanical loading and unloading, saving time and effort.

With self-unloading function, it is more convenient to unload and unload materials.

National III emission-resistant, explosion-proof diesel engine with low pollution and strong power.

(Remote controlled crawler dump truck could be available for your option.)


TECHNICAL PARAMETERS

Item

Unit

WCL5YY

WCL3YY

The whole machine

Weight

kg

5000

3000

Overall dimensions

(L×W×H)

mm

(4250×1400×1885) ±20

(4200×1200×1855) ±20

curb weight

kg

5600

4500

System working pressure

MPa

20

20

Start mode

electric start

electric start

Operation method

Manual + remote control two-way driving

Manual + remote control two-way driving

Largest traction

kN

40

35

Ground clearance

mm

250

200

No-load ground voltage

MPa

0.04

0.04

Full load ground voltage

MPa

0.08

0.08

Cargo box volume(L×W×H)

mm

(2290×1400×400) ±10

(2240×1200×400) ±10

Remote control distance

m

0-50

0-50

Boom

Rated work stress

MPa

20

20

Rated lifting weight

kg

2000

1500

Arm rotation angle

(°)

±90

±90

Maximum lifting height

mm

2760

2680

Telescopic stroke

mm

700

700

walk

mechanism

walking style

Hydraulic motor drive, crawler walking

Hydraulic motor drive, crawler walking

Braking type

Failure braking type

Failure braking type

Walking speed (high speed/low speed)

m/min

40/26

40/26

Gradeability

(°)

±16

±16

Track shoe width

mm

300

250

Rated work stress

MPa

20

20

Effective volume of fuel tank

L

100

80

Minimum passing capacity radius

mm

2500

2500

Braking force

kN

62.5

40

Car lift

Lift angle

°

40±1

40±1

Rise Time

s

7.5

7.5

Fall time

s

15

15

Explosion-proof diesel engine

model

KC494DZLDFB

KC494DZLDFB

power

kW

50

50
