Underground Coal Mine Water Sumps Cleaning Machinery For Water Sump Sediment Transport Collection and Clearance. Product Introduction

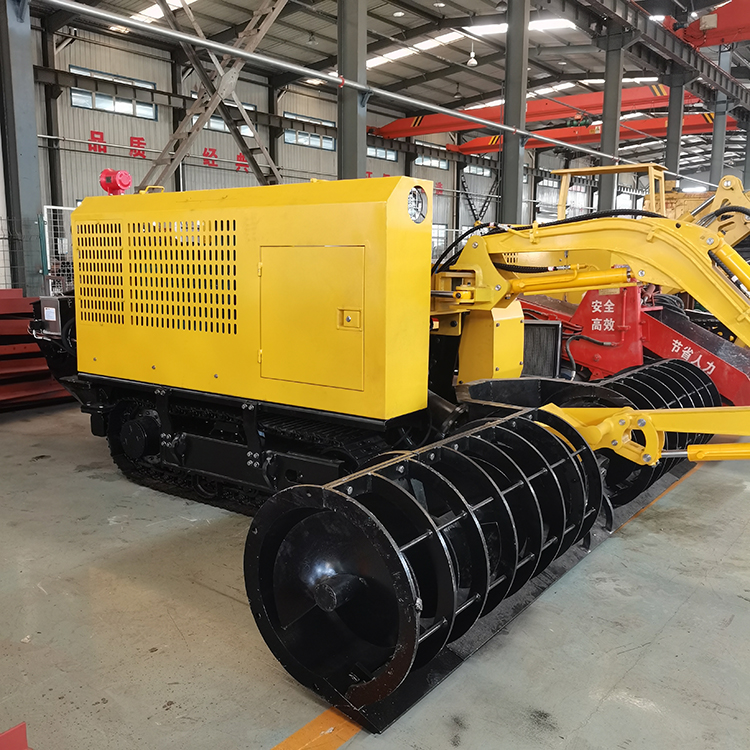

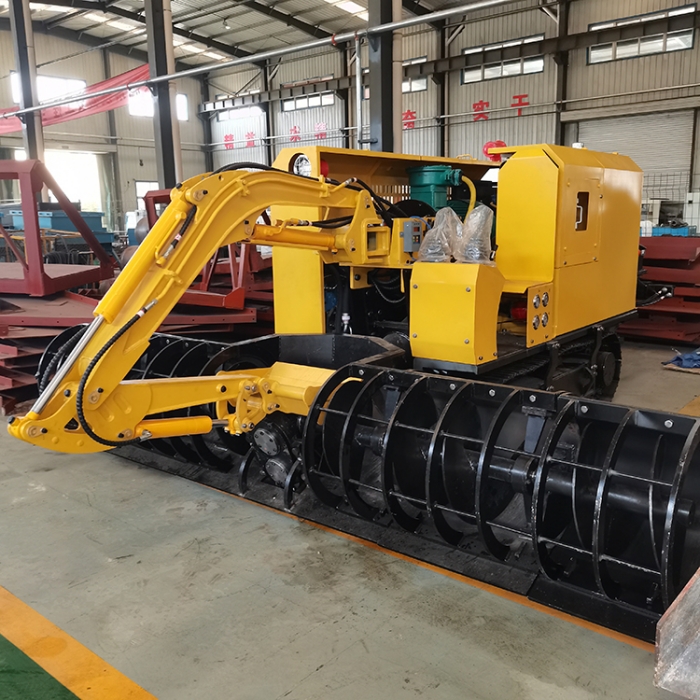

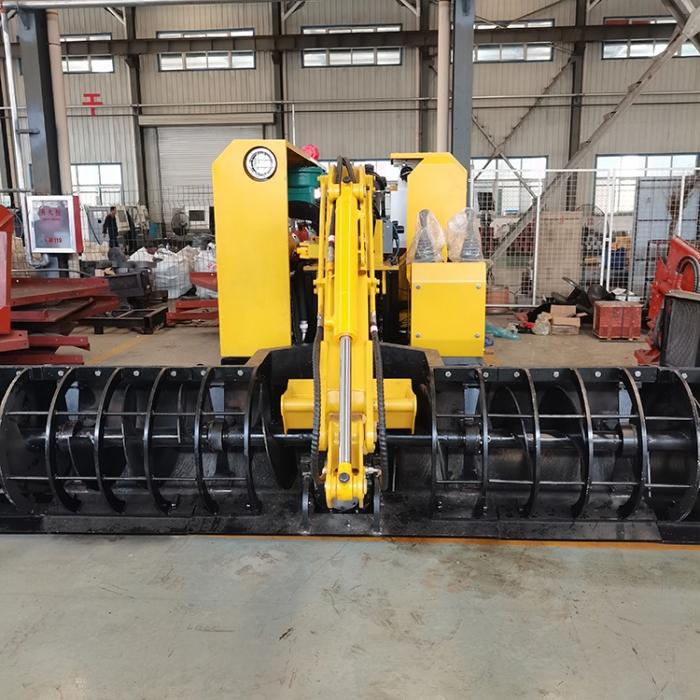

The MQCY series Coal Mine Water Sump Cleaning machine is specially designed for cleaning the coal slime or sediment from water sumps (water reservoirs, water tanks, sedimentation tanks) in underground coal mine, mainly used for the transportation of coal slime in underground water sumps.  This machine is one multi functional clearing machinery integrated with system of collecting, digging, traveling and pumping.  It is suitable for a series of transportation such as peat and sludge.

Features:

1. The addition of an excavating arm working device makes it have a bigger working scope.
2. Using screw conveying system, it makes the machine has higher working efficiency and longer pumping distance.
3. The whole machine adopts load-sensing hydraulic system, variable-variable plunger pump, and load-sensing control valve, so that the control actions are coordinated, the system is stable and reliable, low power consumption, and high efficiency.
4. The modular and detachable design of the whole machine is convenient for the installation, inspection and maintenance.

5. The structural parts of the whole machine are all made of Q345B steel, which make the whole machine have enough stability and strength.


TECHNICAL PARAMETERS

Technical Parameters of Underground Cleaning Machine

Model

MQCY-30/75.75YL

MQCY-17/55.75YL

Electric Motor Power

KW

75.75

55.75

Main Pump working pressure

MPa

28

28

Working capacity

m³/h

30

17

Horizontal conveying distance

m

800

700

Vertical conveying distance

m

140

120

Working width

m

2.4-3.8

2.4

Screw running speed

r/min

50-90

50-90

Pumping system outlet pressure

MPa

12

11

Ground clearance

mm

200

200

Machine wading depth

mm

700

700

Max digging height

mm

3500

3000

Max digging width

mm

4400

3800

Machine weight

Kg

8300

6800

Cross section Of working circumstance (Width*Hegith)

m

3-4x3

2.5-3.5x3

Overall sizeLxWxH

mm

5800x1550x2000

5270x1550x2000
