Application

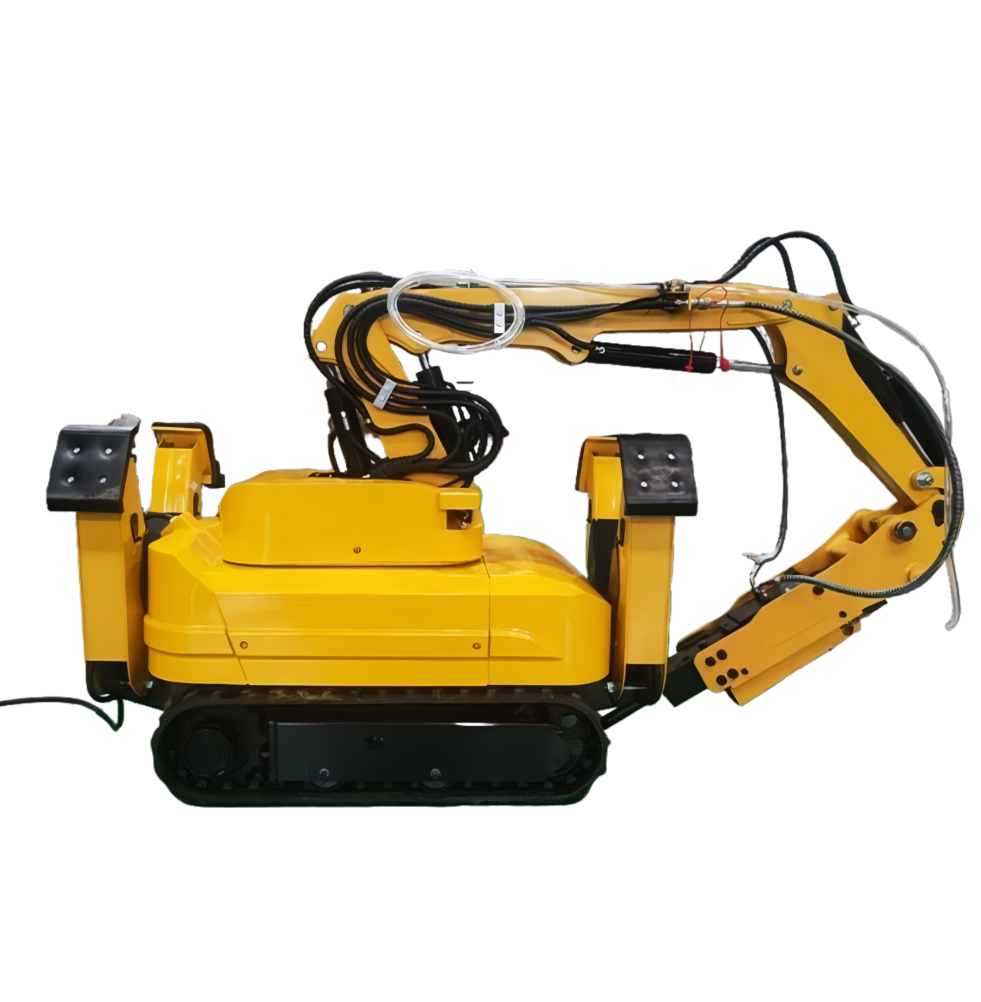

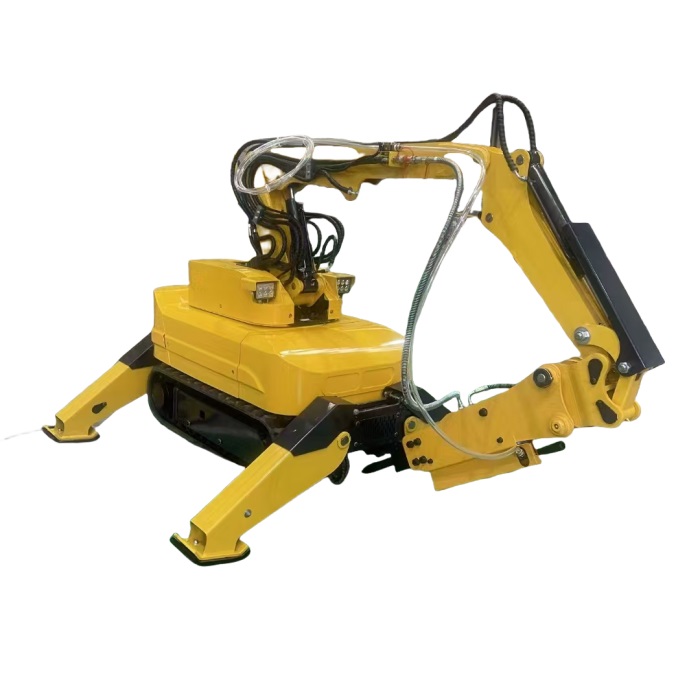

The KA110ERC demolition robot is mainly used in concrete breaking of commercial and industrial buildings, renovation of dilapidated buildings, maintenance and slag removal of metallurgical furnaces, earthquake rescue and earthquake disaster relief.TECHNICAL PARAMETERS
|
|
|
|
Machine performance |
|
|
Rotary speed |
10 sec/360° |
|
Traveling speed |
2 km/h |
|
Gradeability |
30° |
|
Max lifting height |
3.75 m |
|
Boom out-reach |
3.5 m |
|
Working radius |
3.5 m |
|
Hydraulic system |
|
|
System volume |
40 L (10.6 US gal) |
|
Main pump |
Variable displacement piston pump |
|
Working pressure |
20 Mpa (2900 psi) |
|
Maximum hydraulic flow |
53 L/min (12 US gal/min) |
|
Power system |
|
|
Power type |
Electric motor |
|
Rated power |
11kW (15Kw for option) |
|
Working voltage |
380V |
|
Starting method |
Direct start/frequency conversion control |
|
Power supply |
Cable |
|
Remote control system |
|
|
Control device |
Portable remote control industrial remote controller |
|
Signal method |
Digital |
|
Control method |
remote control |
|
Others |
|
|
Machine weight (w/o attachments) |
1200Kg |
|
Noise standard |
91 dB(A) |
