TECHNICAL PARAMETERS
|

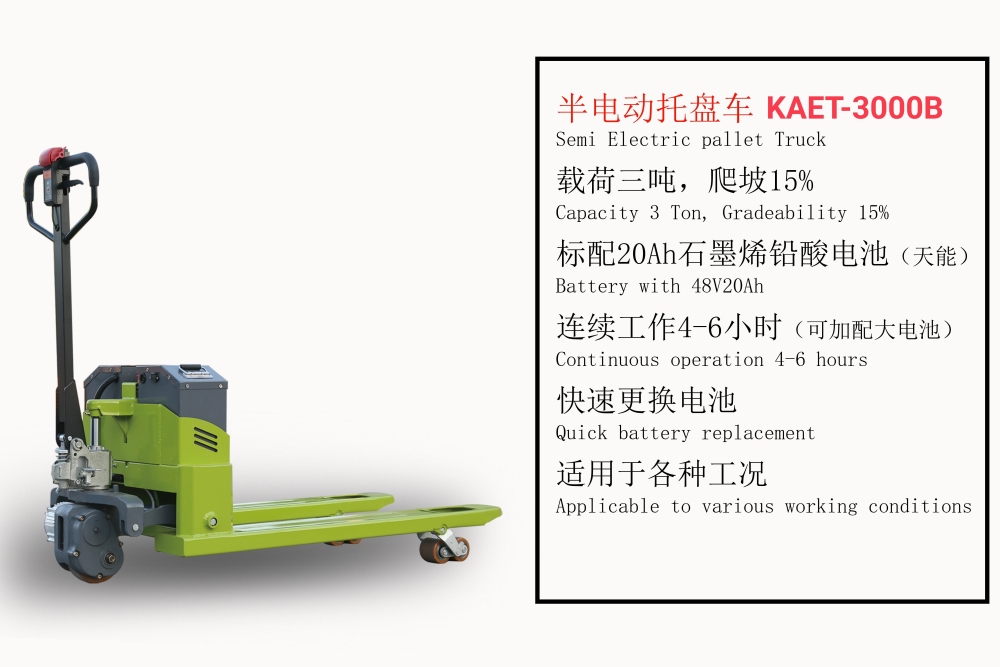

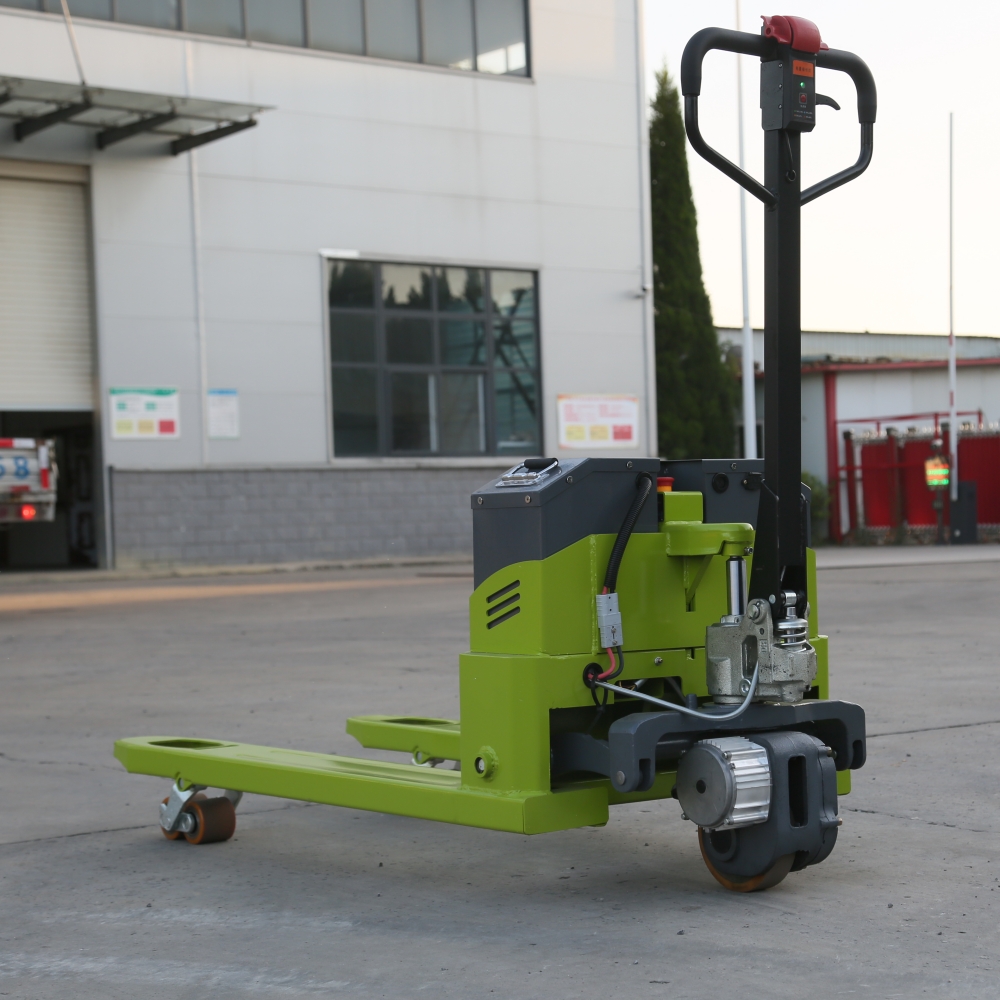

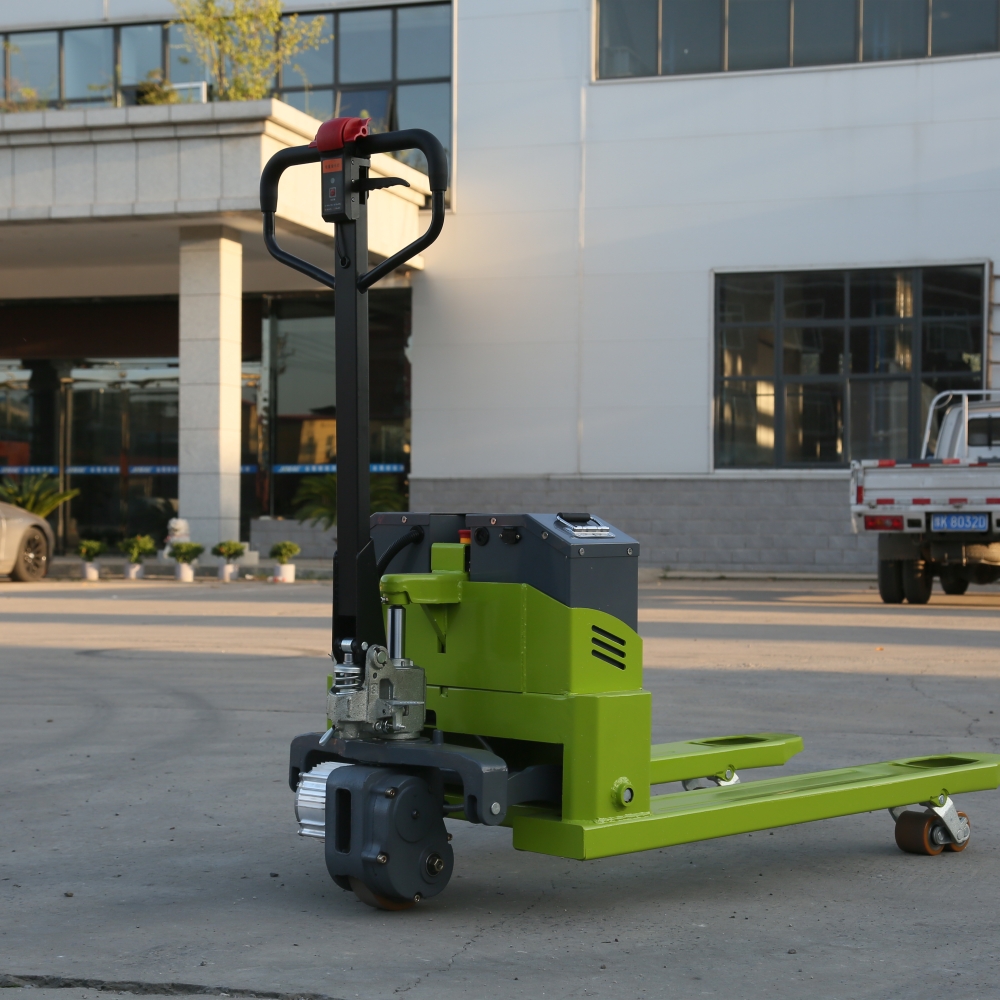

Electric Pallet Truck Forklift Specification |
||||
|
|
1.1 |
Origin |
|
China |
|
1.2 |
Brand |
|
Kuangan |
|
|
1.3 |
Model |
|
KAET-3000B |
|
|
1.4 |
Power Type |
|
Lead Battery/Liuthium |
|
|
1.5 |
Operation Type |
|
Walkie |
|
|
1.6 |
Rated Capacity |
kg |
3000 |
|
|
1.7 |
Load Center |
mm |
500 |
|
|
1.8 |
Lifting Height |
mm |
200 |
|
|
|
2.1 |
Overall Dimension(L/W/H) |
mm |
1620×690×1325 |
|
2.2 |
Fork Sizes |
mm |
1150×160×55 |
|
|
2.3 |
Fork Width Min./Max. |
mm |
550/685 |
|
|
2.4 |
Min. Ground Clearance |
mm |
85 |
|
|
2.5 |
Turning Radius |
mm |
1200 |
|
|
2.6 |
Min.Right Angle Channel Width |
mm |
1560 |
|
|
|
3.1 |
Self-weight(with battery) |
kg |
165 |
|
3.2 |
Battery Weight |
kg |
22 |
|
|
|
4.1 |
Wheel Type |
|
Solid PU |
|
4.2 |
Driving Wheel Sizes |
mm |
210×70 |
|
|
4.3 |
Loading Wheel Sizes |
mm |
80×70 |
|
|
|
5.1 |
Driving Motor |
kw(60min) |
0.85 |
|
5.2 |
Lifting Motor |
kw(60min) |
/ |
|
|
5.3 |
Battery Dimension |
mm |
271×174×213 |
|
|
5.4 |
Battery Voltage/Capacity |
V/ah |
2x24/20 |
|
|
5.5 |
Controller |
|
DC |
|
|
5.6 |
Working Pressure |
mpa |
14 |
|
|
|
6.1 |
Travel speed(laden/unladen) |
km/h |
4.5/5 |
|
6.2 |
Lifting speed(laden/unladen) |
mm/s |
30/34 |
|
|
6.3 |
Max Climbing Ability |
% |
15 |
|
|
6.4 |
Braking |
|
electromagnetic induction |
|
|
|
7.1 |
Driving Type |
|
Electric |
|
7.2 |
Steering System |
|
Manual |
|
|
7.3 |
Noise Level |
|
40 |
|
|
7.4 |
Waterproof Grade |
|
IP68 |
|
