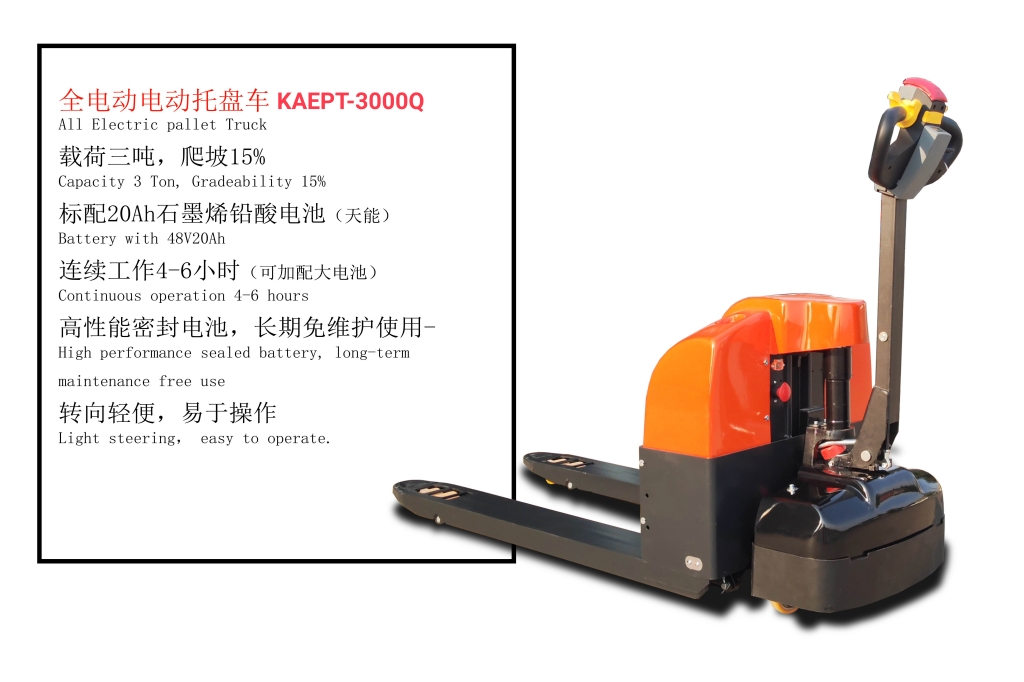

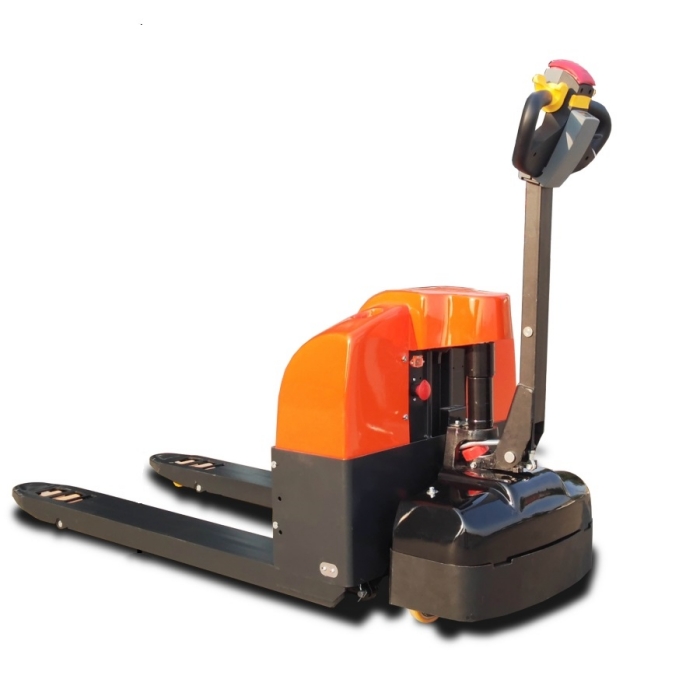

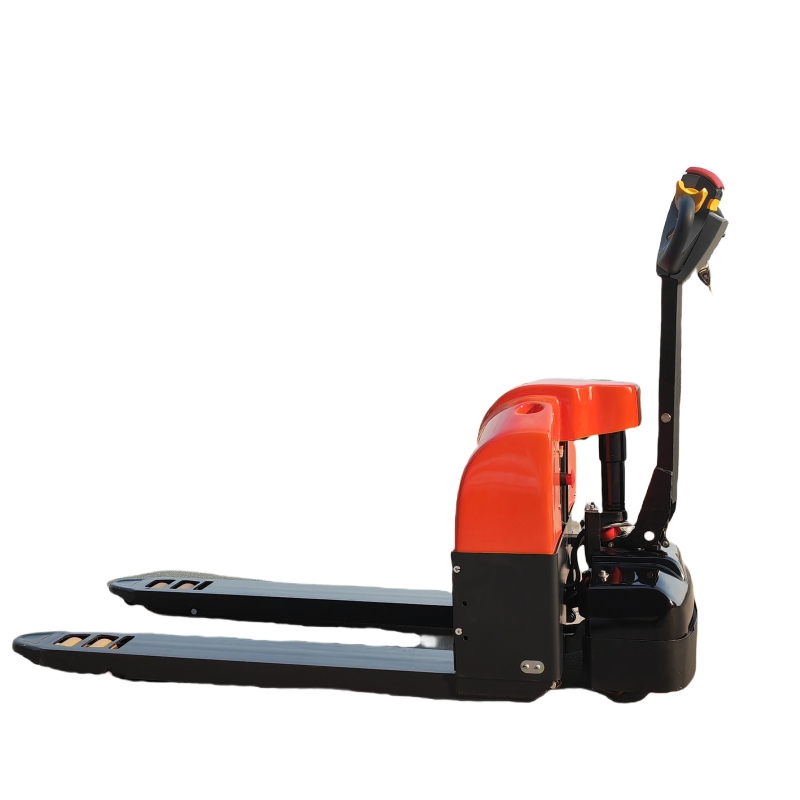

Motorized Pallet Jack Fully-electric type for sale, with Lithium battery and Lead-acid Battery power for the option.

All-Electric Pallet Truck Forklift Specification

FEATURE

1.1

Origin

China

1.2

Brand

Kuangan

1.3

Model

KAEPT-3000Q

1.4

Power Type

Lead Battery/Lithium

1.5

Operation Type

Walking

1.6

Rated Capacity

kg

3000

1.7

Load Center

mm

500

1.8

Lifting Height

mm

200

DIMENSION

2.1

Overall Dimension(L/W/H)

mm

1730×(550/685)×1325

2.2

Fork Sizes

mm

1150×155×55

2.3

Fork Width Min./Max.

mm

550/685

2.4

Min. Ground Clearance

mm

85

2.5

Turning Radius

mm

1200

2.6

Min.Right Angle Channel Width

mm

1560

WEIGHT

3.1

Self-weight(with battery)

kg

225

3.2

Battery Weight

kg

20

WHEEL

4.1

Wheel Type
(driving/turning)

Solid PU

4.2

Driving Wheel Sizes

mm

170X53

4.3

Loading Wheel Sizes

mm

80X70

DRIVING
＆
CONTROL

5.1

Driving Motor

kw(60min)

1.5

5.2

Lifting Motor

kw(60min)

0.8

5.3

Battery Dimension

mm

159×188×104

5.4

Battery Voltage/Capacity

V/ah

2x24/20

5.5

Controller

DC

PERFORMANCE

6.1

Travel speed(laden/unladen)

km/h

3.5/4

6.2

Lifting speed(laden/unladen)

mm/s

4

6.5

Max Climbing Ability

%

15

6.6

Braking

electromagnetic induction

OTHER

7.1

Driving Type

Electric

7.2

Steering System

Manual

7.3

Noise Level

63

7.4

Waterproof Grade

IPX4
