Power Transmission Case For Converting the Engine Power To Multiple Hydraulic Pumps. Product Introduction

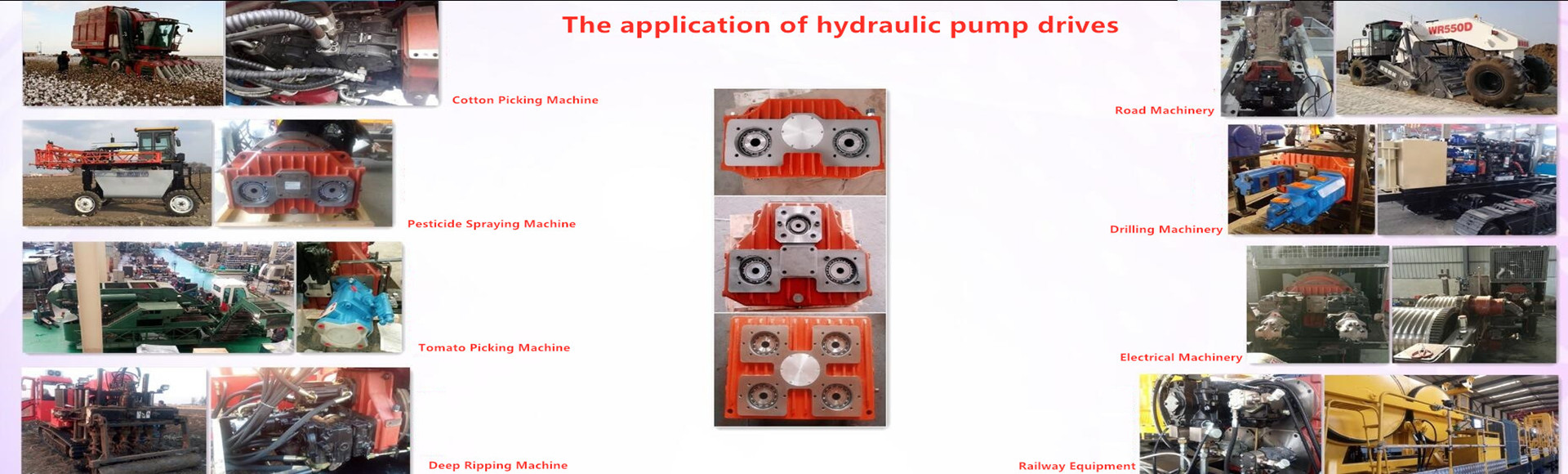

The Pump Drives (Hydraulic pump Drives) is a gearbox allowing the connection between a prime mover (internal combustion engine or electric motor for example) and one or more hydraulic pumps. Usually it is used on both stationary and mobile application where mechanical power must be converted into hydraulic power for the purpose of operating travel functions and services.

The hydraulic pumps drives gearboxes consist of a gear drive inside a bell housing that connects to a gasoline or diesel engine. The opposite side contains one or more standard 2- or 4-bolt flanges for mounting hydraulic pumps. This configuration provides several benefits. For one, two or more identical pumps can be connected to provide nearly identical hydraulic output flow from each. Or different sized pumps can be used provide output flow proportional to the displacement of each pump.These gearboxes not only saves space and weight but also eliminates the number of components and reduces assembly time for the whole machinery. Our modular pump drives could allow driving two to four pumps simultaneously. This not only offers design flexibility, but can boost system efficiency as well.

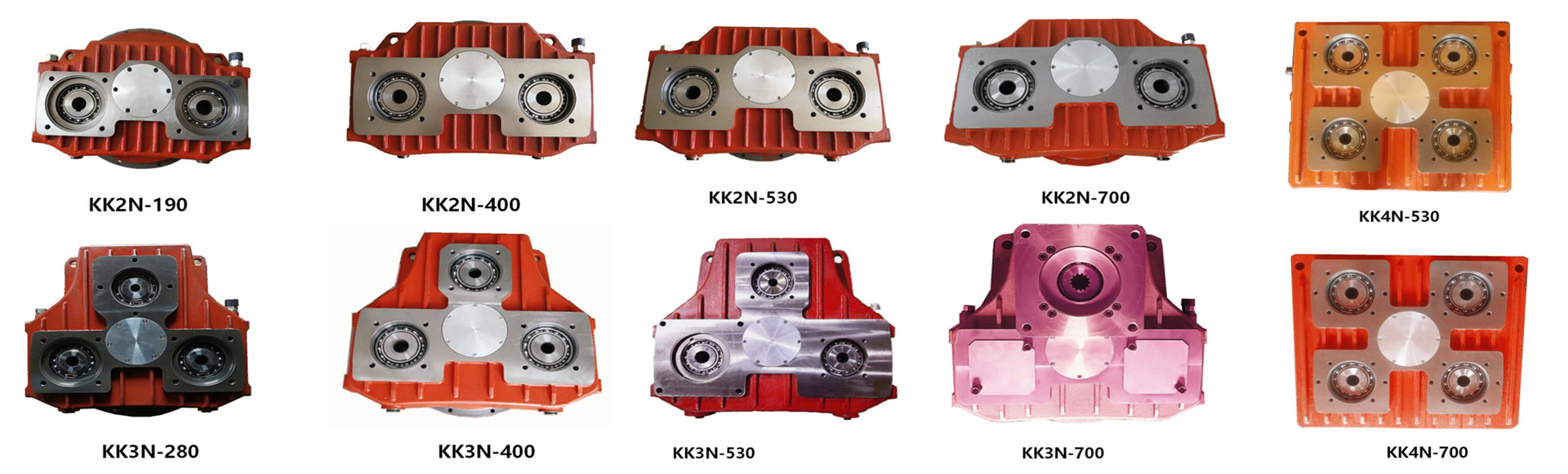

We have two pump drives, three pumps drives and four pumps drives for the buyers` option. Customized requirements could be satisfied.

TECHNICAL PARAMETERS

Parameter

                              Model

4 Pumps drive

KK530-4N

KK700-4N

Max. Input power (KW)

530

700

Max. Output power per pump pad (KW)

270

330

Max. Output torque per pump pad (Nm)

1500

1800

Max. Input speed (RPM)

2600

2400

Max. Output speed (RPM)

2800

2700

Transmission ratio

0.67/0.74/0.81/0.89/0.98···

0.67/0.74/0.81/0.89/0.98···

Mount size of Prime mover

SAE #1 #2 #3 etc.

SAE #1 #2  etc.

Port size of Single pump

SAE B,C,D,E flange etc.

SAE B C,D flange etc.

Housing material

Cast iron

Cast iron
