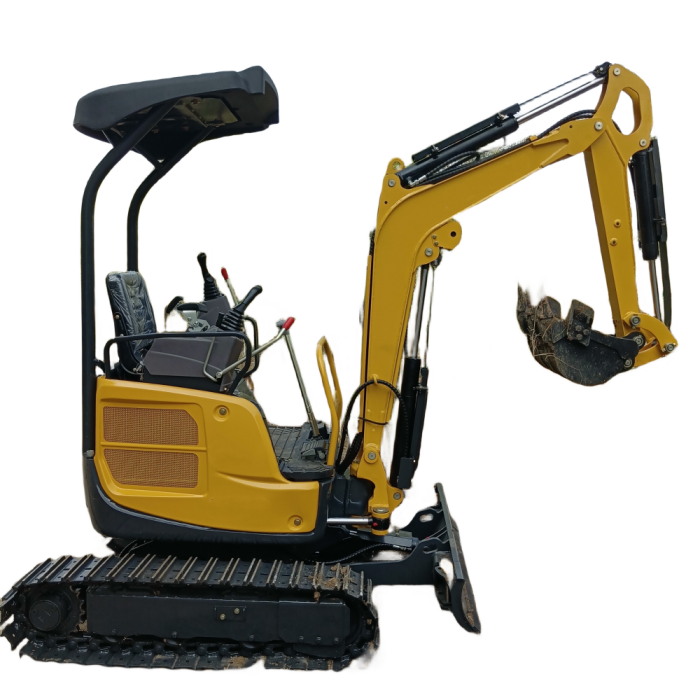

Our KA18 Mini Excavator, a powerhouse designed to excel in heavy lifting and precision work with its Yanmar engine and 1.8-ton machine weight (Operating weight around 2 ton). This compact yet mighty machine offers a smooth ride, robust power, and agile maneuverability, making it perfect for construction, landscaping, and utility projects. With features like intuitive controls, ergonomic design, and durable construction, Our KA18 Mini Excavator ensures maximum productivity and reliability, allowing operators to tackle tasks with ease and precision. Revolutionize your work efficiency and outcomes with the KA18, your ultimate mini excavator solution.
Features:
1. Compact design zero tail Excavator are CE marked / certified.
2. It is powered with Yanmar diesel engine which meets Euro 5 and EPA emission standards.
3. Extendable crawler
4. Swing arm
5. Detachable canopy (Closed cab for option)
6. Hydraulic load sensing system
7. High and low traveling speed
Technical Parameters
|
1760Kg |
11.2Kw |
2630mm |
2200mm |
0.04m³ |
|
>>MAIN TECHNICAL PARAMETER |
|
|
ENGINE |
|
|
Emission Standard |
EPA4/EURO 5 |
|
Make |
Yanmar |
|
Model |
3TNV74 |
|
Power /Rotation speed |
11.2kw(15HP)@2400rpm |
|
Number of cylinder |
3 |
|
Type |
Water cooled, in-line,4-stroke,mechnical pump. Naturally aspirated |
|
Max. torque of engine |
51.8Nm/ 2400rpm |
|
Displacement of engine |
0.993L |
|
Engine oil capacity |
3.1L |
|
TRACK SYSTEM |
|
|
Maximum Travel speed(High-Low speed) |
1.9/3.8km/h |
|
Width of track shoe(Rubber ) |
230mm |
|
Carrier roller(one side) |
1 |
|
Support wheel(one side) |
3 |
|
PERFORMANCE PARAMETER |
|
|
Standard bucket capacity |
0.04m³ |
|
Width of standard bucket |
300mm |
|
Swing speed |
10 rpm |
|
Max. Grade ability |
30% |
|
Max. Bucket digging force |
17.5KN |
|
Max. Arm digging force |
15KN |
|
Hydraulic system pressure |
21Mpa |
|
Ground pressure |
29Kpa |
|
Machine weight |
1760kg |
|
Fuel tank capacity |
20L |
|
Main overflow pressure |
24.5 Mpa |
|
Flow of main pump(Variable piston pump) |
61.6L/ min |
|
MACHINE SIZE |
|
|
Overall dimension (L*W*H) |
3460mm*1280(950)mm*2370mm |
|
Axle base(Track length on ground) |
1280mm |
|
Track gauge |
1280mm |
|
Min.Ground clearance |
175mm |
|
Swing radius at tail |
mm |
|
Boom length |
mm |
|
Arm length |
mm |
|
WORKING RANGE |
|
|
Max. Digging height |
3690mm |
|
Max. Dumping height |
2630mm |
|
Max. Digging depth |
2200mm |
|
Max. Vertical digging depth |
1850mm |
|
Max. Digging radius |
3710mm |
|
Min .swing radius at front |
1520mm |
|
Max. Lifting height of blade |
260mm |
|
Max. Cutting depth of blade |
205mm |
|
Boom swing angle(Left) |
42° |
|
Boom swing angle(Right) |
75° |

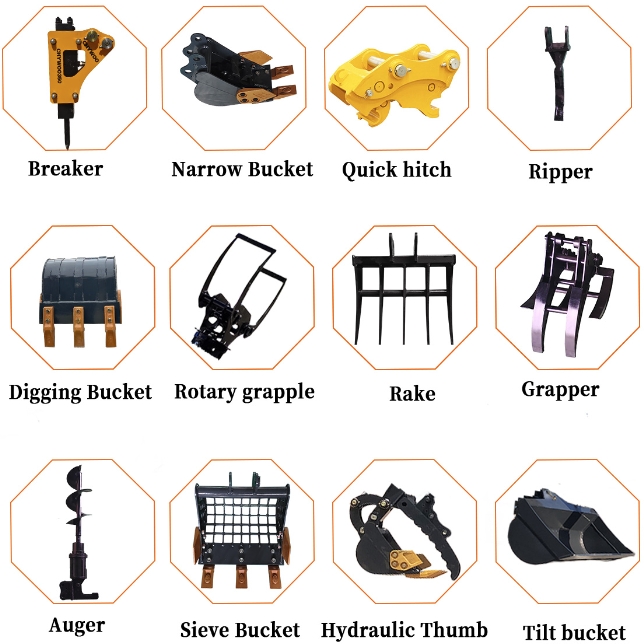

Optional Attachments for the option
